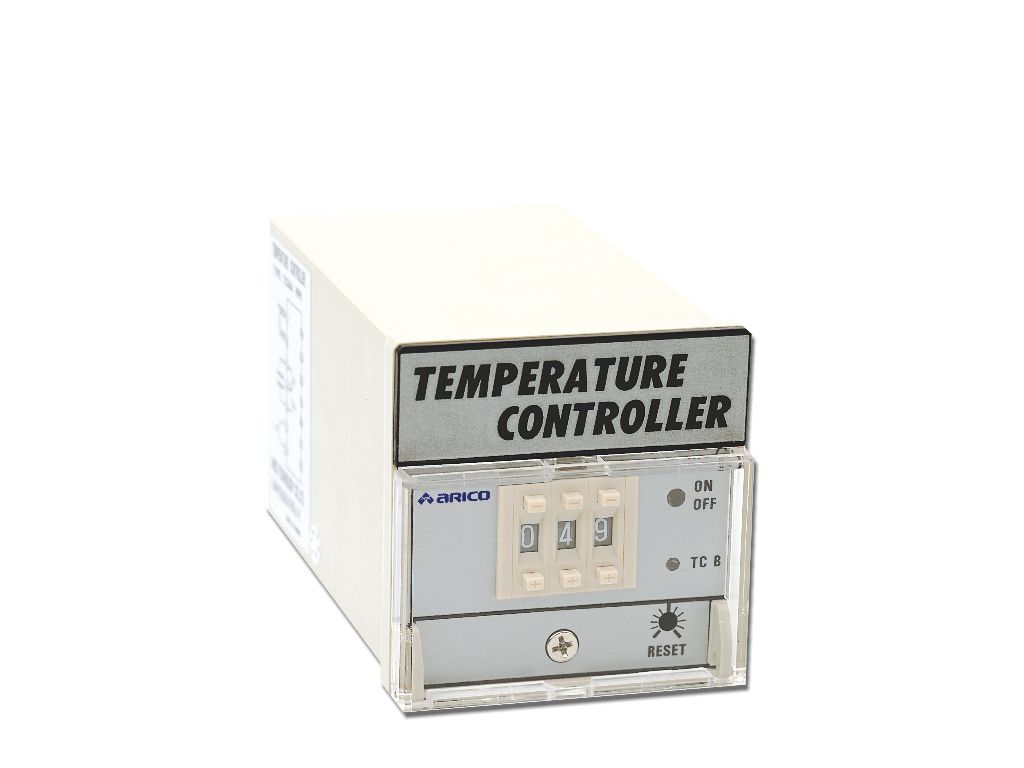

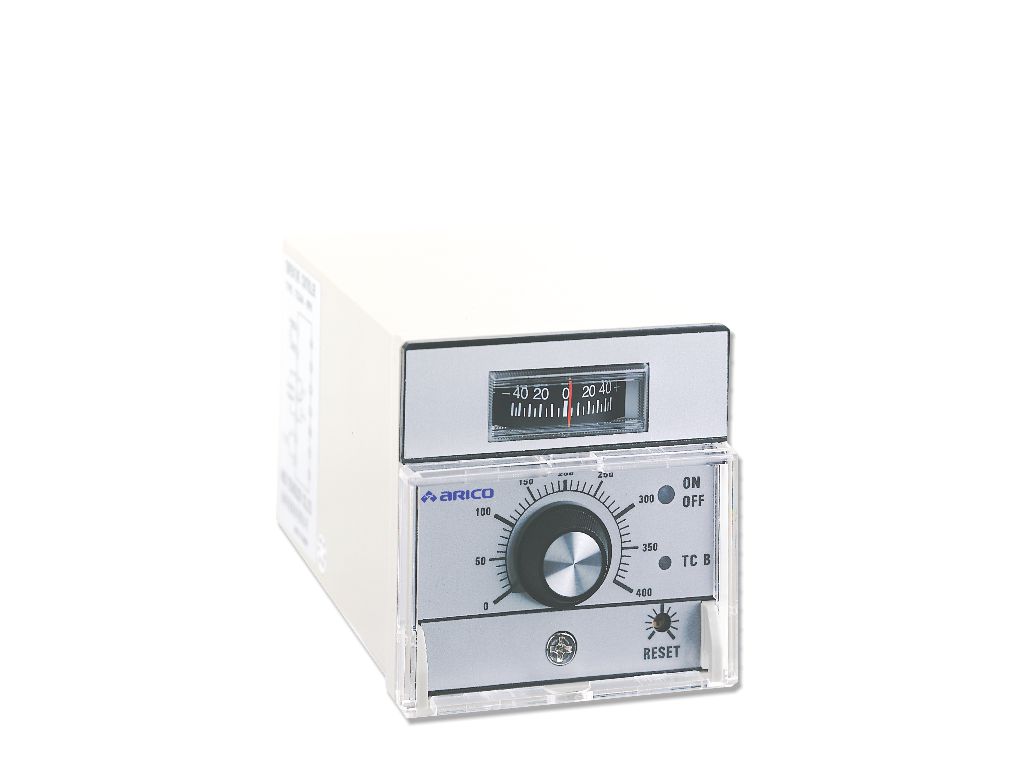

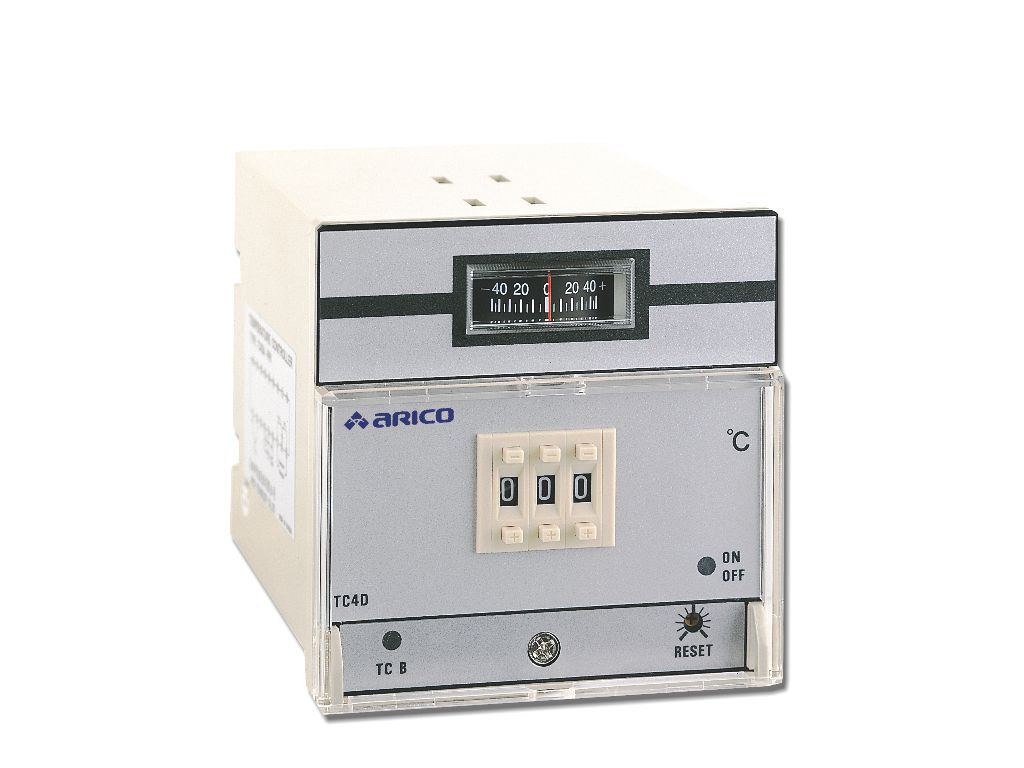

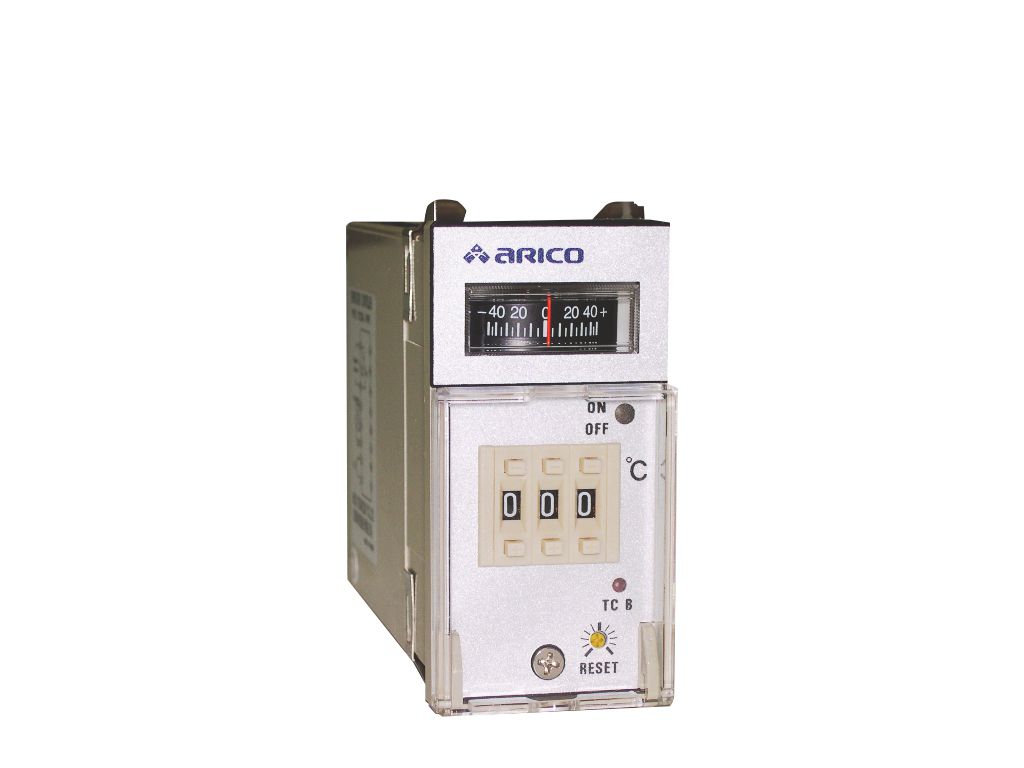

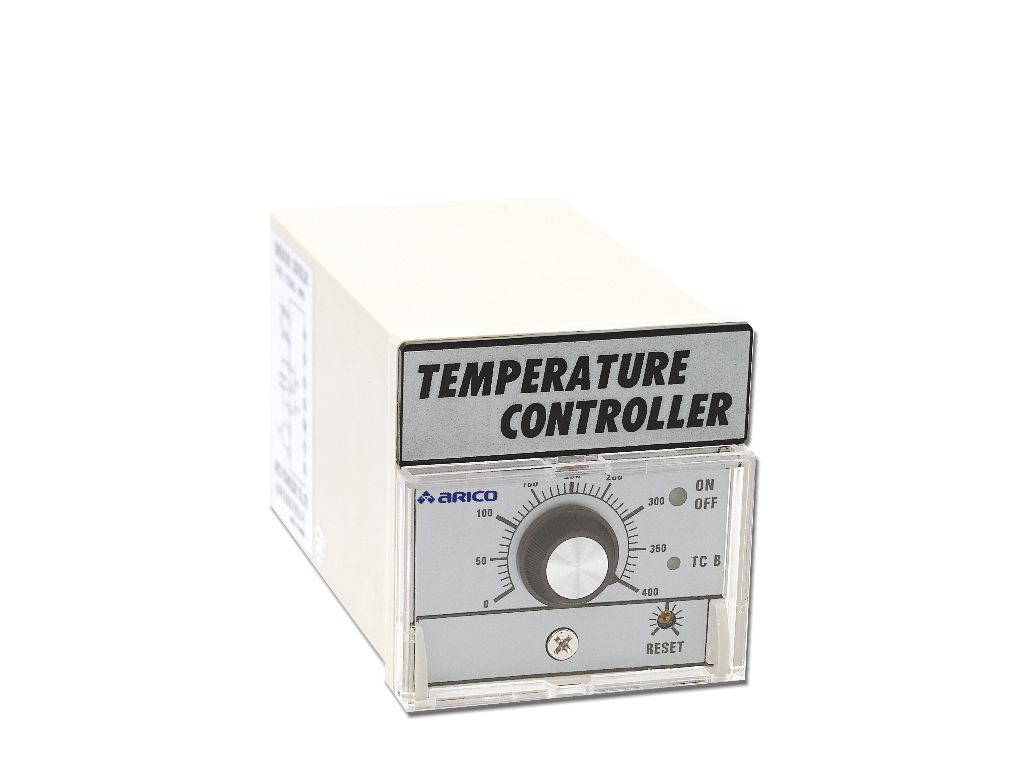

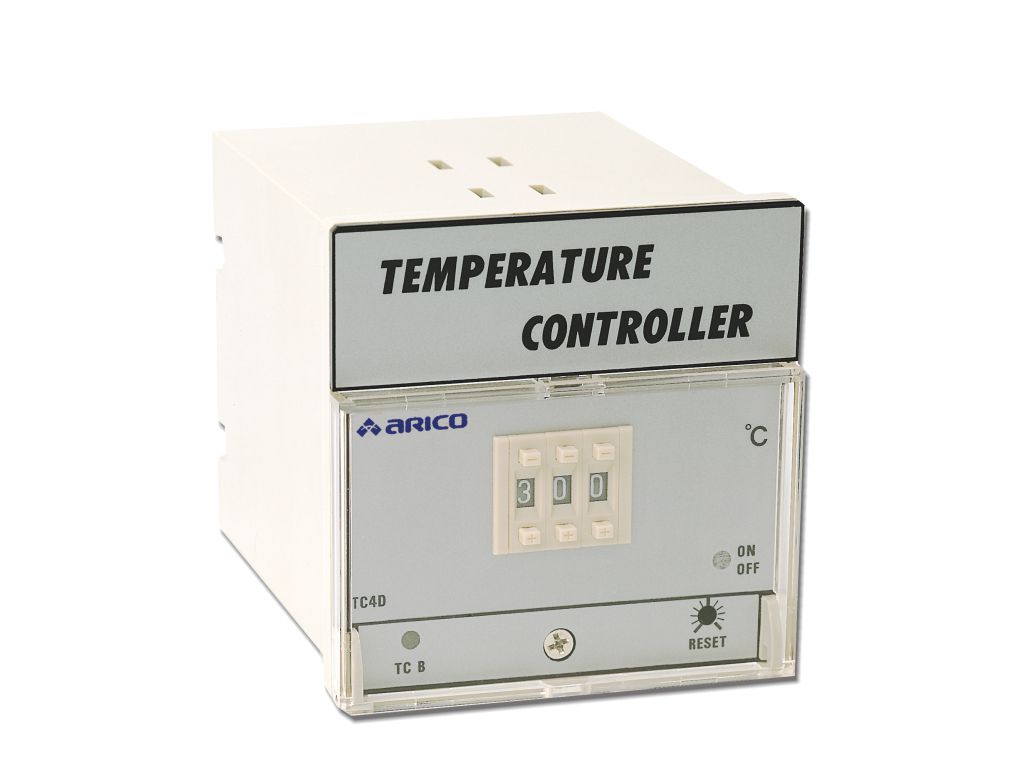

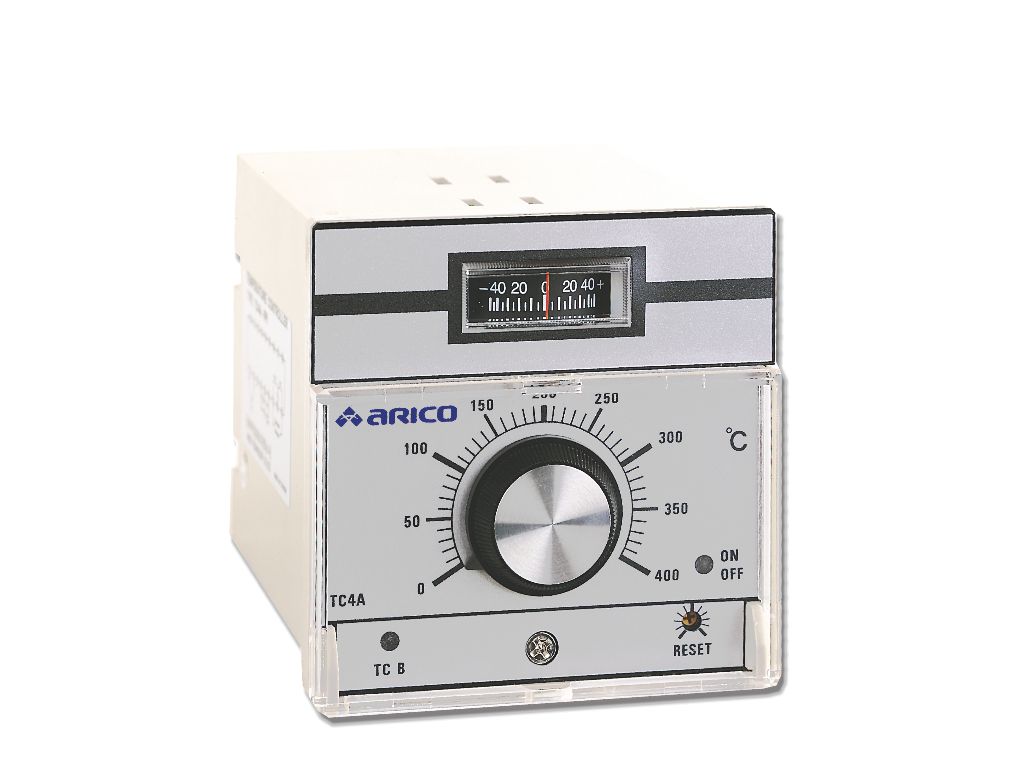

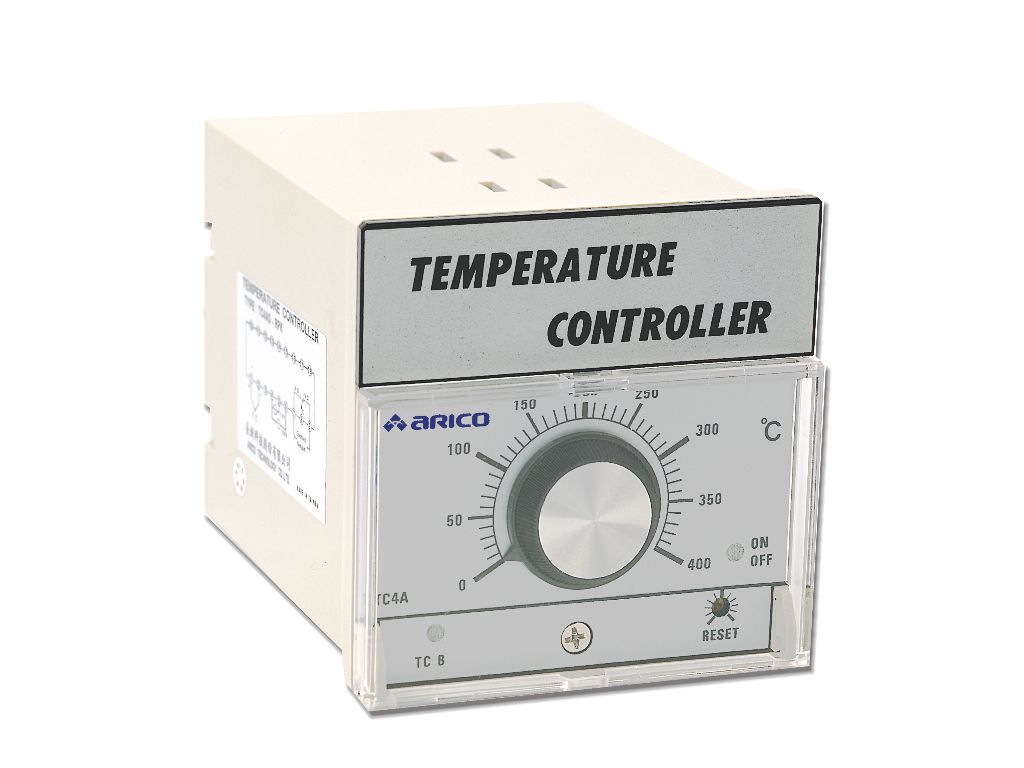

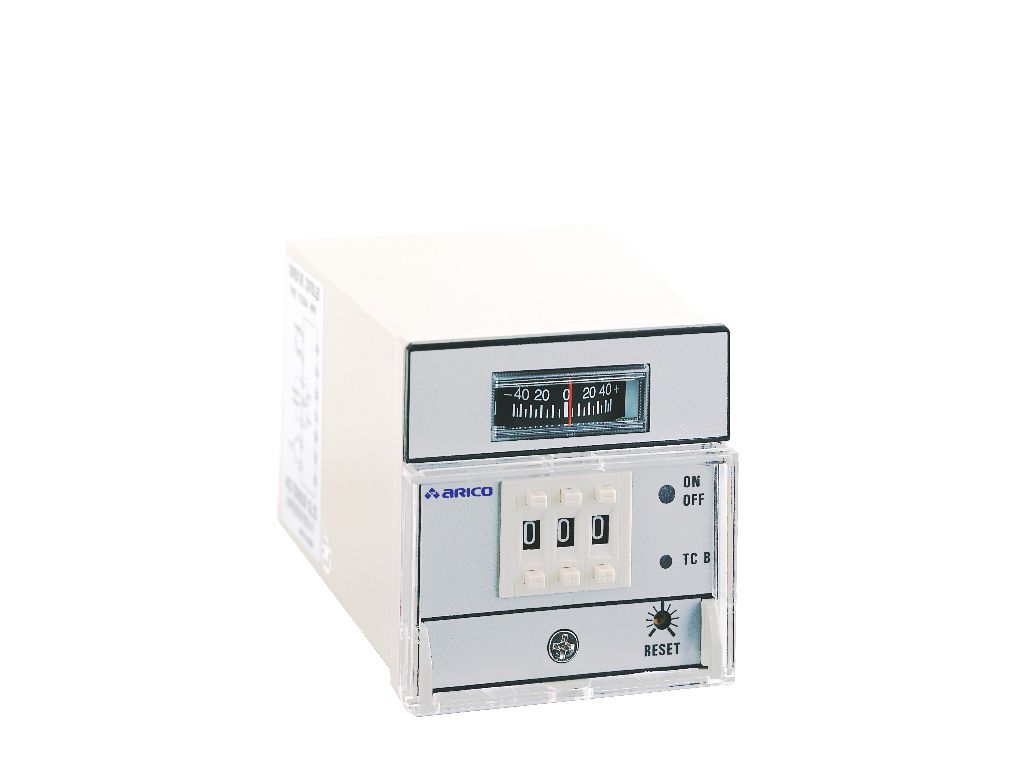

H / TC Series Temperature Controller
Features
- Features include thermocouple-break indication, proportional (P) or ON / OFF or proportional control, heater-break indication, and five alarm output modes. These features improve user convenience and safety, and meet various application needs.
| Model | H2 | TC2 | TC3 | TC4 |
|
Dimension W × H Unit：mm |
W48×H96 | W48×H96 | W72×H72 | W96×H96 |
| Unit Weight | 320g | 350g | 350g | 420g |
|
Setting Type A: Analog D: Digital |
DA | DA | AA、AO、DA、DO | AA、AO、DA、DO |
|
Display Type A: Analog O: No display |
||||
| Power Consumption | 2W | |||
| Power Supply | 110/220VAC±5% 50~60Hz | |||
| Ambient Temperature | -10 ~ +55°C | |||
| Accuracy | ± 0.5% Full scale | |||
| Alarm Output | None |
None AC120V/0.5A |
None |
None AC120V/0.5A |
| Controlling Measure | ON / OFF, Proportional | |||
| Controlling Output | ||||
| Relay contact | 250VAC/5A | |||
| Digital Voltage | DC 0 , 6V/ 20mA | |||
| Analog Voltage | None | |||
| Analog Current | None | |||
| Input Type | ||||
| Thermocouple | J、K | |||
| RTD | None | PT100 | None | |
| Linear Analog | None | |||
