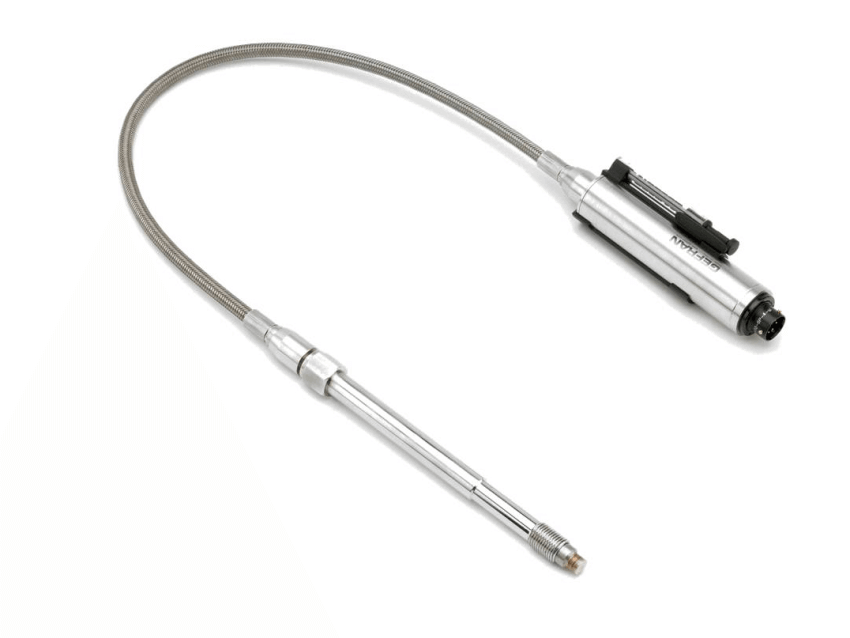

IE PLc Melt pressure transmitters-Output 4...20mA
Features
- The “IMPACT” series of Gefran, are pressure transmitters, without transmission fluid, for using in High temperature environment (350°C).
- Medium pressure is transferred directly to the sensitive silicon element via a thick diaphragm.
- Strain is transduced by a micro-worked silicon structure (MEMS).
- The operating principle is piezoresistive.
- Pressure ranges:0-100 to 0-1000 bar / 0-1500 to 0-15000 psi
- Accuracy:< ±0.25% FSO (H); < ±0.5% FSO (M)
- Standard threading 1/2-20UNF, M18x1.5; other versions on request
- Other types of diaphragms are available on request
- Autozero function on board / external option
- 15-5 PH stainless steel diaphragm GTP coated
