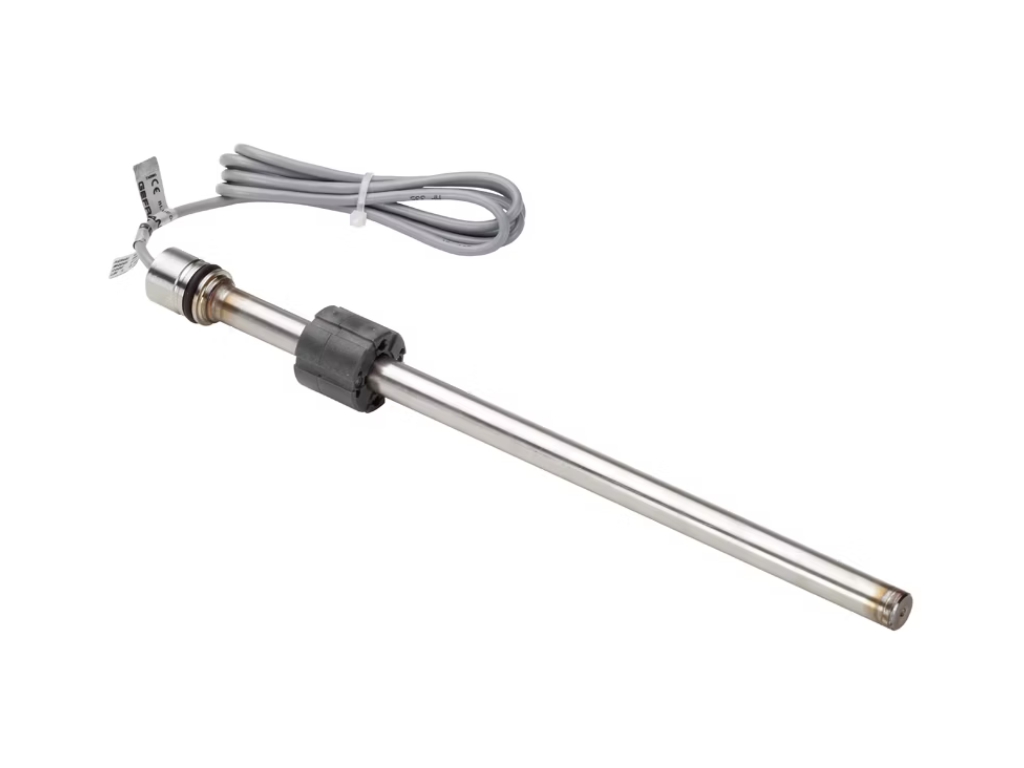

Gefran PMI-SL Rectilinear Displacement Transducer with Magnetic Drag
Features
Useful electrical stroke (C.E.U.): 50 - 1000 mm
- The PMI-SL transducer, an evolution of the PMI-12, is designed for all inside cylinder applications which require a smaller transducer. For this reason, the diameter has been reduced to 12.7 mm.
- The PMI Slim offers the same robustness as the PMI-12: AISI 316 stainless steel body, IP67 protection level, and pressure resistance up to 250 bar (400 bar peak).
- Available with flanged or threaded heads, to guarantee mechanical compatibility with all main cylinder types.
- Patented solution.
- Ideal for applications inside hydraulic cylinders, demanding simple solutions which guarantee measurement repeatability.
