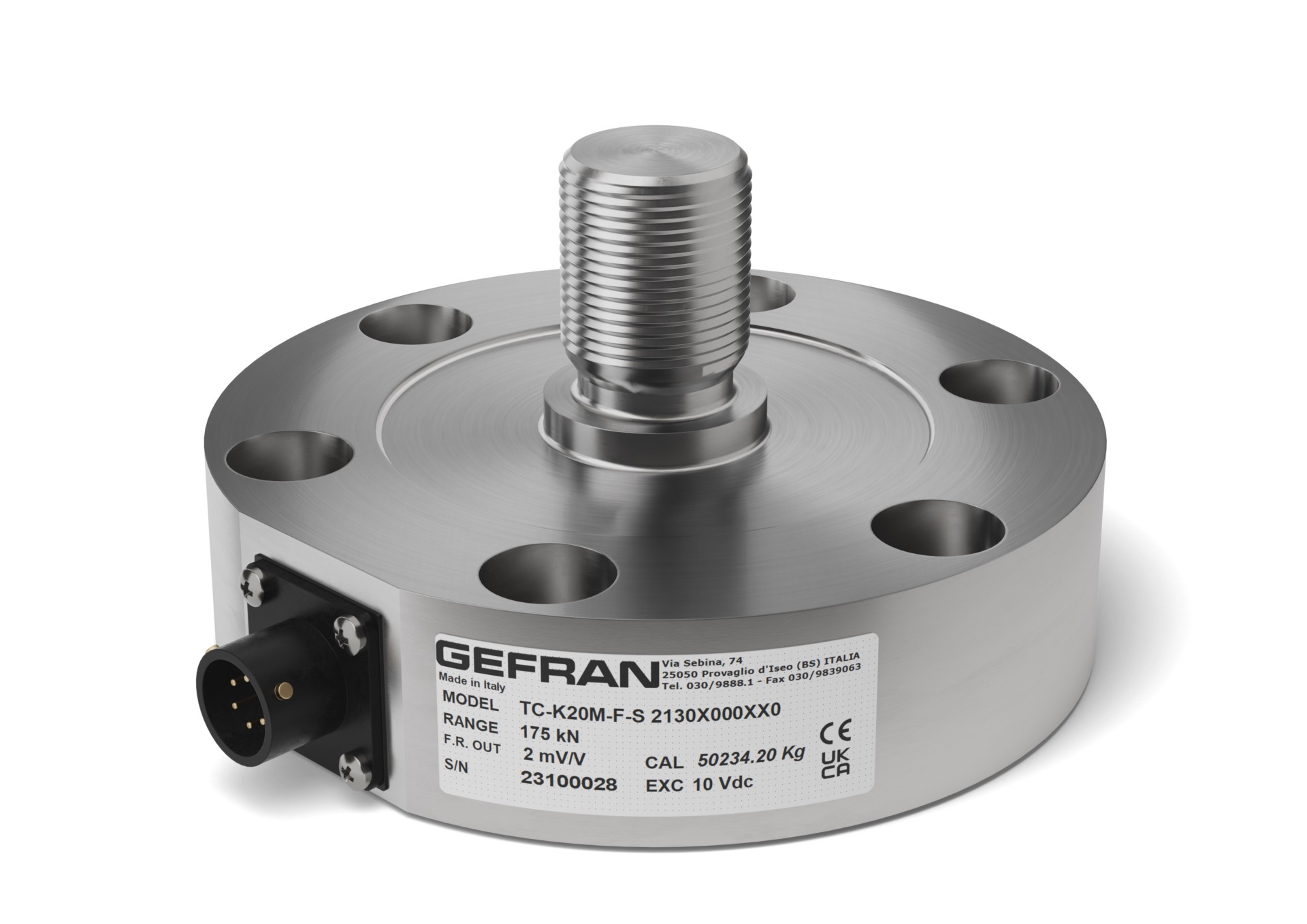

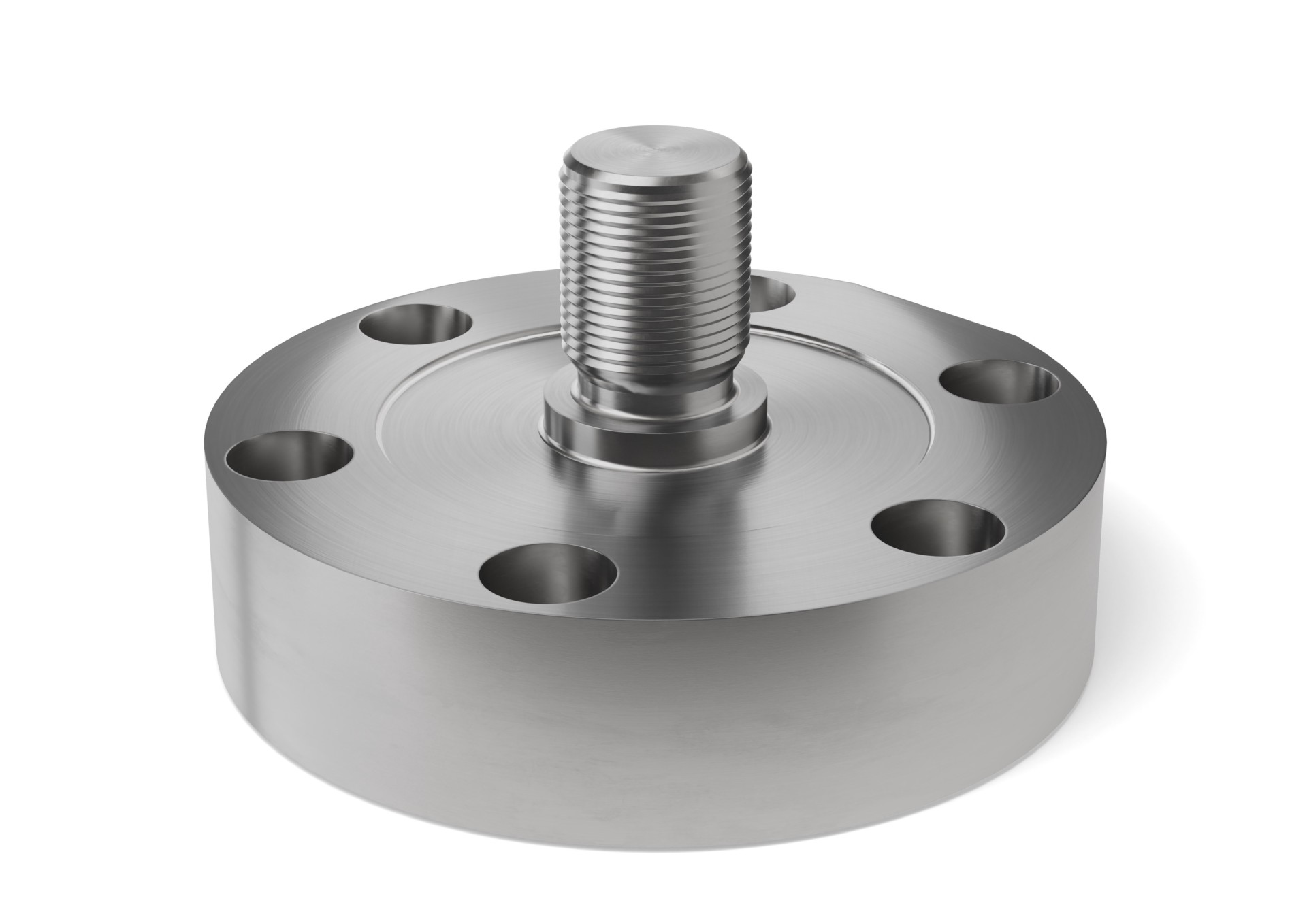

Gefran TC Load Cells
Features
- 1. Range of measurement: from100 to 20.000 Kg
- 2. Accuracy class: 0,2%
- 3. All stainless steel construction
- 4. Corrosion resistant
- 5. Internally generated calibration signal
- 6. Grade of protection: IP67 (DIN 40050)
- TC-1-2-3-4
- 1：Measurement range （KG）
- 2：Electric connections
- 3：Sensitivity
- 4：Customer requested
K1C----0-100
K2C----0-200
K3.5C----0-350
K5C----0-500
K7.5C----0-750
K1M----0-1000
K2M----0-2000
K3.5M----0-3500
K5M----0-5000
K7M----0-7000
K10M----0-10000
K20M----0-20000
F----6*0.25--5m shielded cable

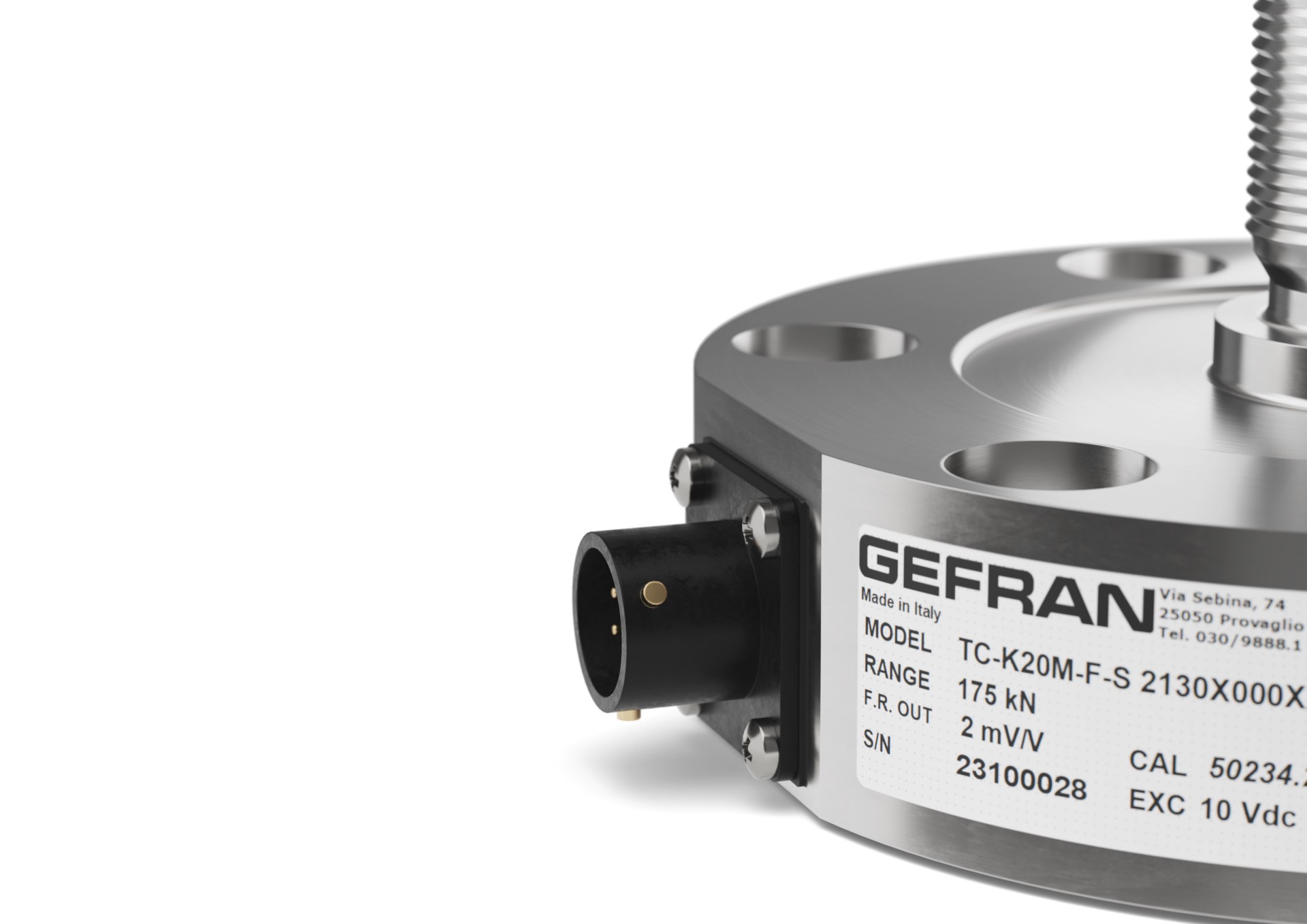

C----VPT02A10-6PT2 connector
S----2mV/V
R----3mV/V（500-5000kg）
