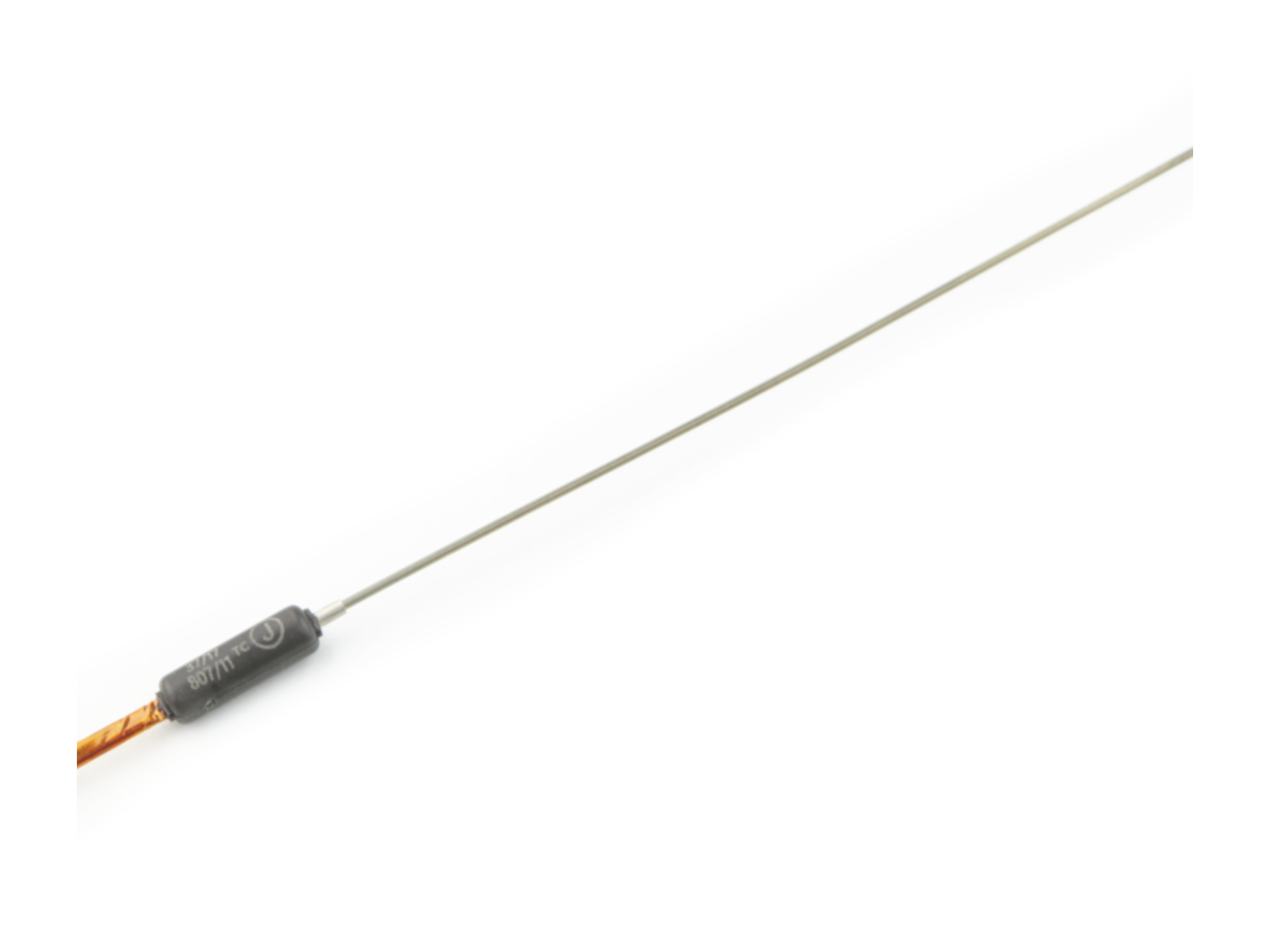

TCTX
- Thermocouple Type：Thermocouple single element type "J" according to IEC 584 class 2 (ASTM E 230)
- Thermocouple Type：Thermocouple single element type "K" (*) according to IEC 584 class 2 (ASTM E 230)
- (*) Type K available on request
- Construction：Mineral insulated cable (MgO) with ungrounded/grounded hot junction
- MgO Cable Sheet Material：T/C "J" AISI 304
- MgO Cable Sheet Material：T/C "K" INCONEL 600
- Performances：Max temperature sensing part: 600 °C (type "J"), 1100 °C (type "K")
- Performances：Max temperature transition: 500°C
- Performances：Max temperature cable: 300°C
- Transition：Refractory polymer transition

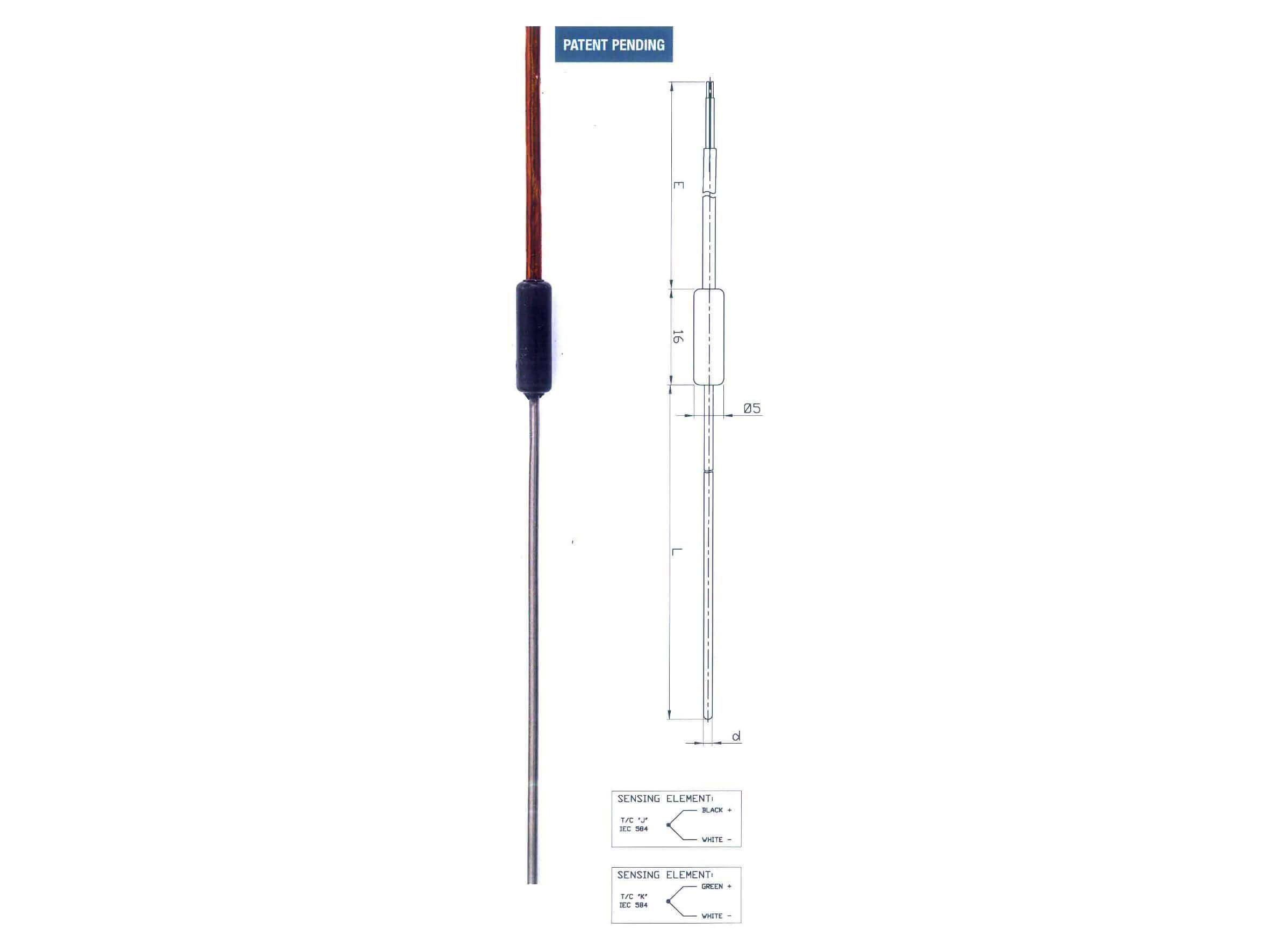

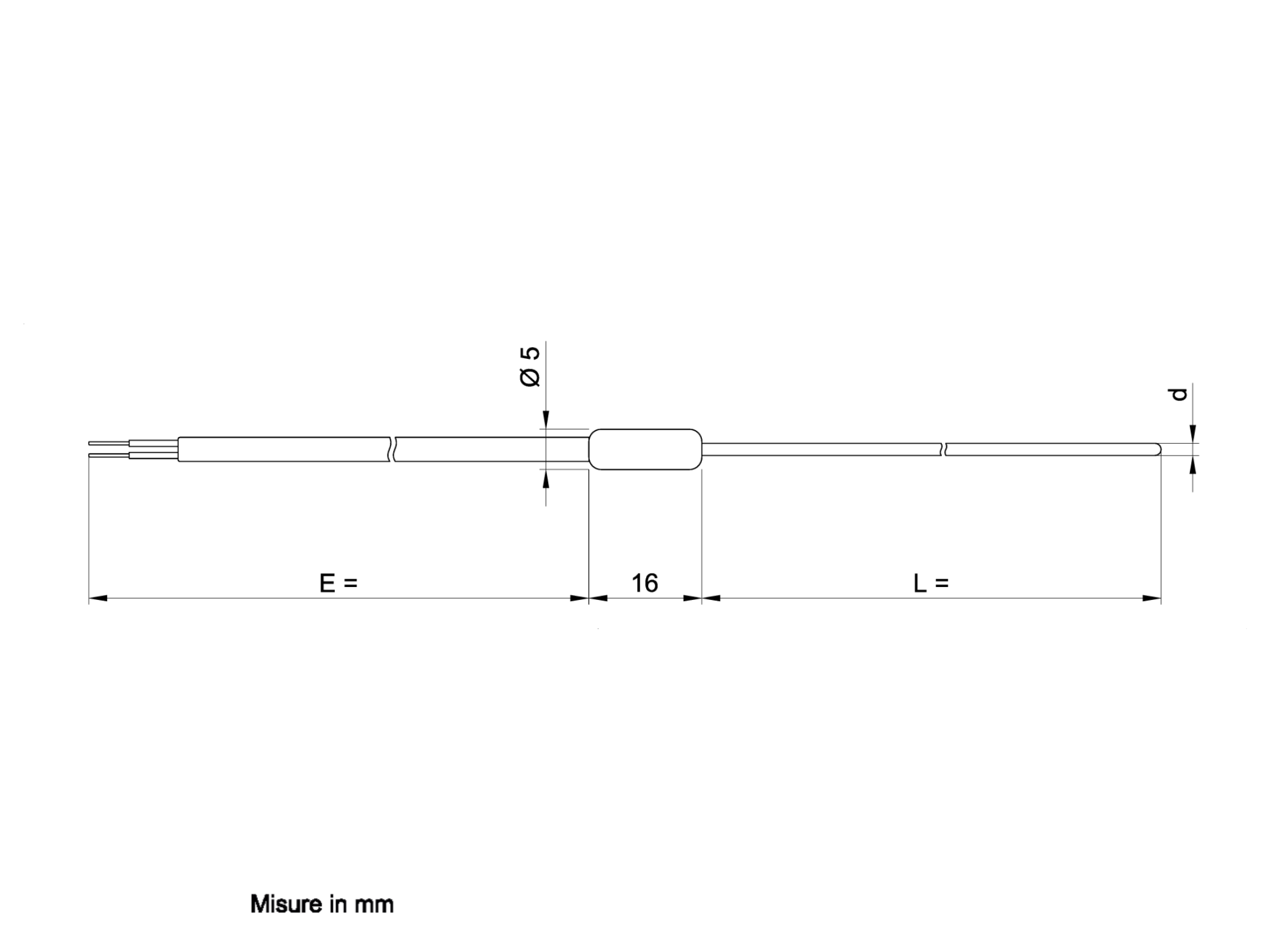

- Sensing Part Dimensions：d=1±0.1mm / d=1.5±0.1mm
- Minimum Bending Radius：Three times, diameter "d"
- Extension Cable：2-wires compensated type "K" or "J" cable 24 AWG, twisted wires, insulated with PTFE + Kapton + Kapton, easy to strip, evident colour on the conductors according to ANSI MC 96.1 (IEC 584)
- Insulation Resistance：Rmin=100MOhm @ 100Vcc
