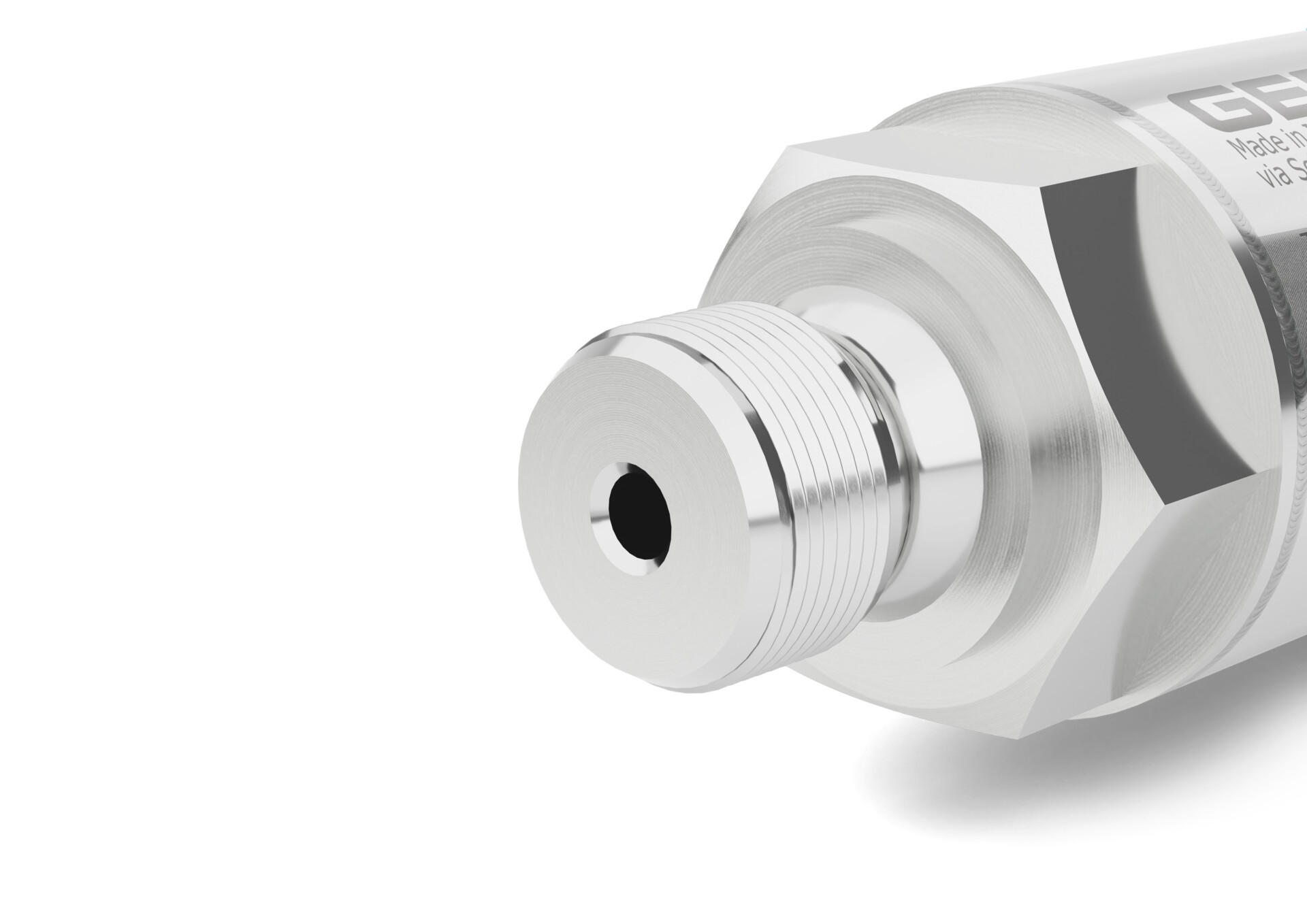

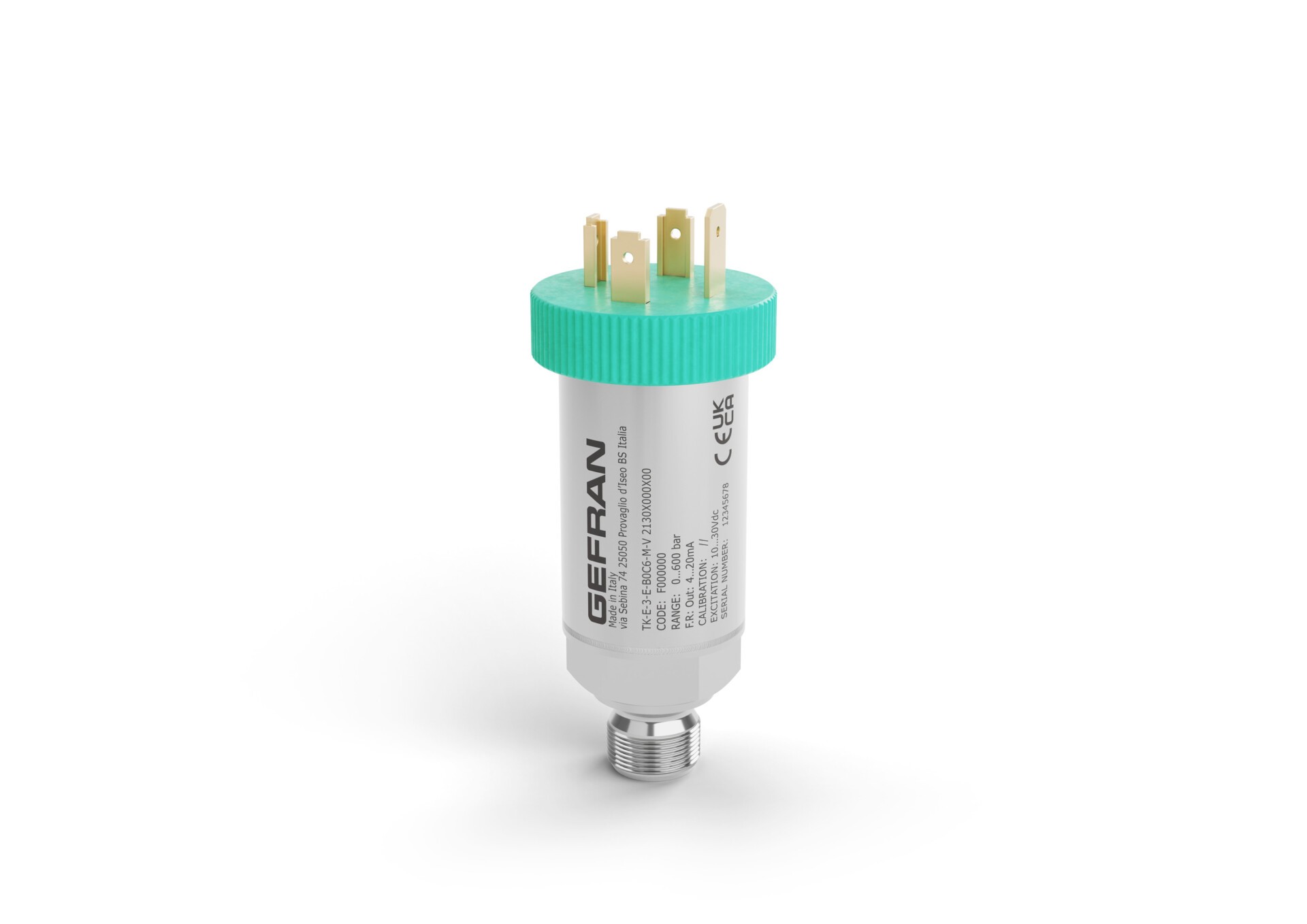

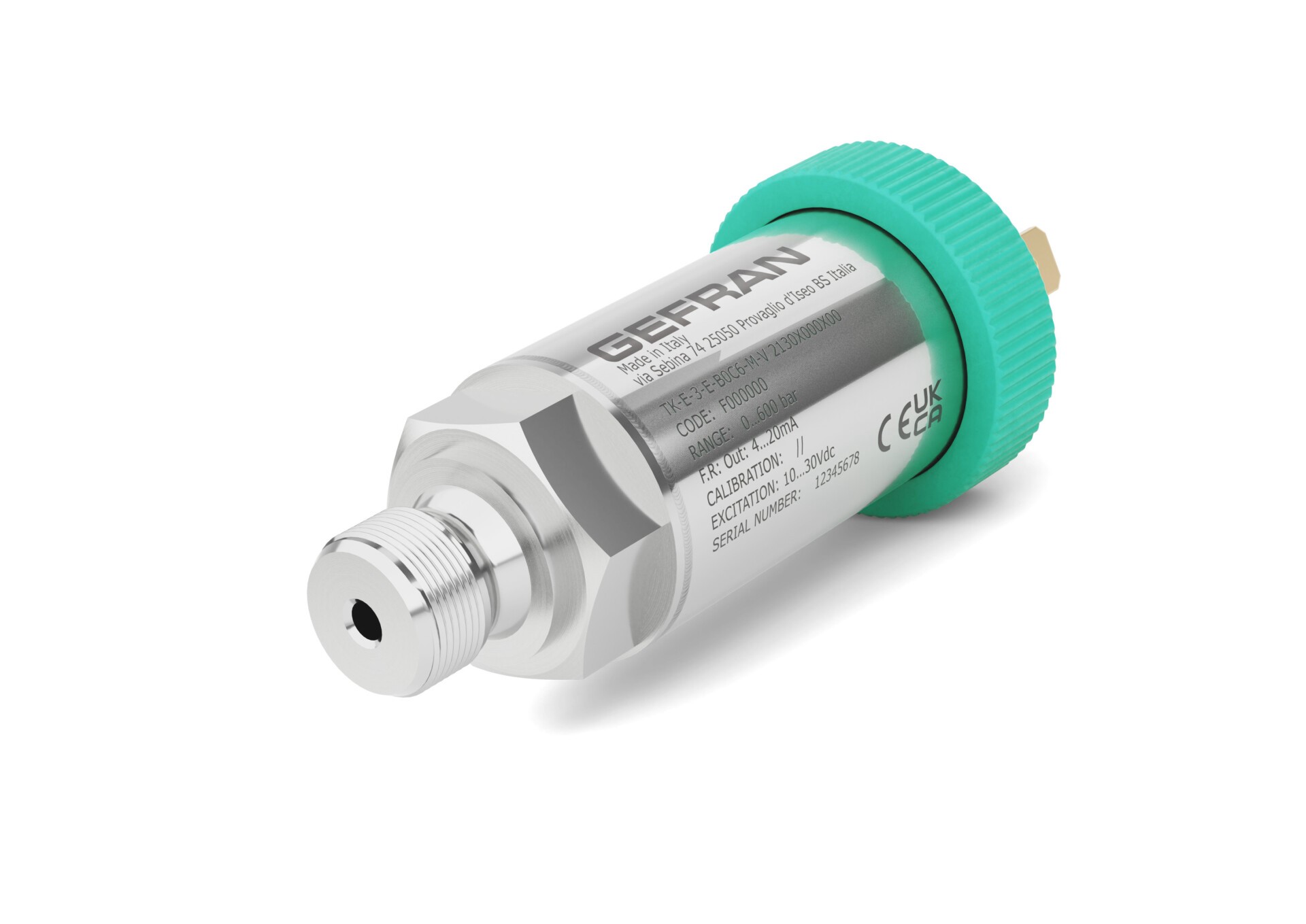

Gefran TK General purpose
Features
- Volt or mA output
- Ranges from: 0...3 to 0...500 bar and ranges from -1...+1 to -1...+10 bar (0...50 psi to 0...7500 psi and -15...+15 psi to -15...+100 psi)
- Output signal 4...20mA 2-wires / 0,1...5,1Vdc / 0,1...10,1Vdc / 0...5Vdc / 0...10Vdc / 1...5Vdc / 1...10Vdc
-
Protection rating: IP65 / IP67
- Gefran TK transmitters are based on the extensimetric thick film measuring principle.
- Thanks to highly stable electronic components, these transmitters can be used in applications requiring longdistance signal transmission or in smart control systems.
- Gefran TK pressure transmitters are designed mainly to measure pressure in oil, air, and hydraulic circuits.
- They can also be used in the technical and process measurement application as well as for compressors, presses and mobile hydraulic.
