C Series Temperature Controller

Features

16 bit microprocessor operating core doing PID + Self-tuning
Various options of input signals (thermocouples, RTD, analog signals, etc.)
Main control output can select relay, pulse voltage, linear analog signals
Can drive all types of contactors, SSR, SCR, 3-line proportional motor valve, etc
Can set reverse / forward control (heating or cooling process)
Dual-output models can do cooling / heating two-way PID controlling
Set Value (SV) can employ analog signal input to achieve Remote Set Value setting
26 types of alarm modes for option ; can be added with broken-line detecting alarm function (HBA)
Re-transmission function can convert Present Value (PV) or controlling output amount into analog signal output for recorder or other applications
Provided with manual output mode
Manual and auto output
Serial communication function supports RTU and ASCII format of Modbus. The Baud rate can reach as fast as 38,400 bit/s
Programmed controlling provides 16 temperature levels whose operating intervals and repeat frequency can be planned freely

+ Add to Inquiry

Dual-output models can do cooling / heating two-way PID controlling
Set Value (SV) can employ analog signal input to achieve Remote Set Value setting
26 types of alarm modes for option ; can be added with broken-line detecting alarm function (HBA)
Re-transmission function can convert Present Value (PV) or controlling output amount into analog signal output for recorder or other applications
Provided with manual output mode
Manual and auto output
Serial communication function supports RTU and ASCII format of Modbus. The Baud rate can reach as fast as 38,400 bit/s
Programmed controlling provides 16 temperature levels whose operating intervals and repeat frequency can be planned freely

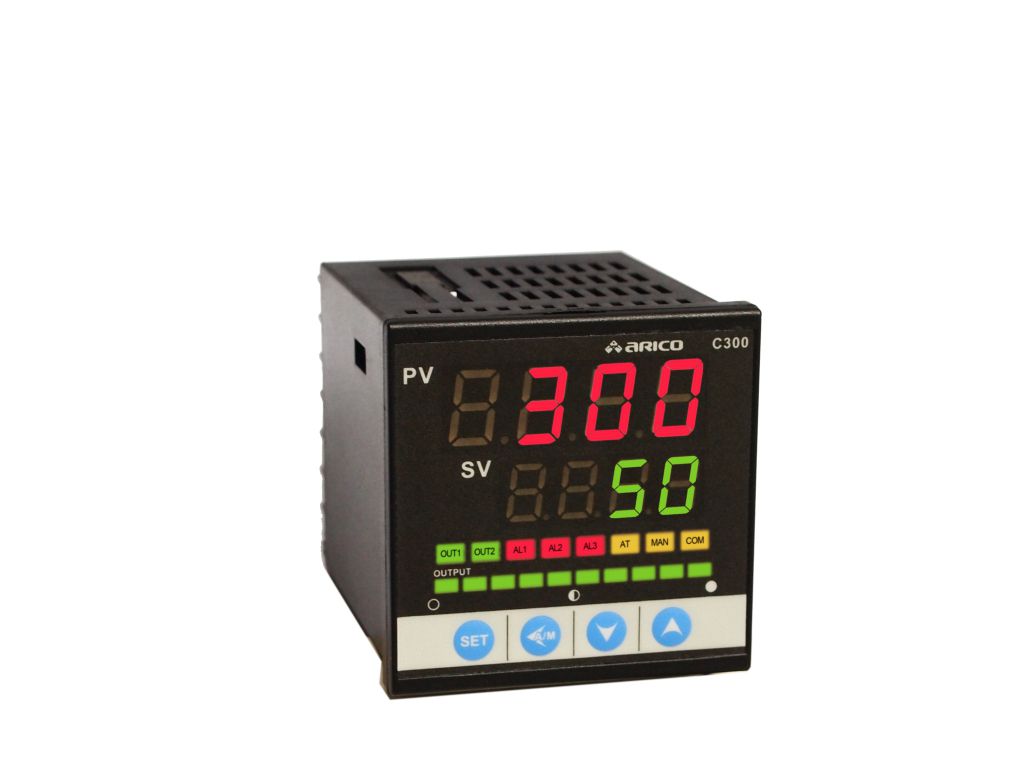

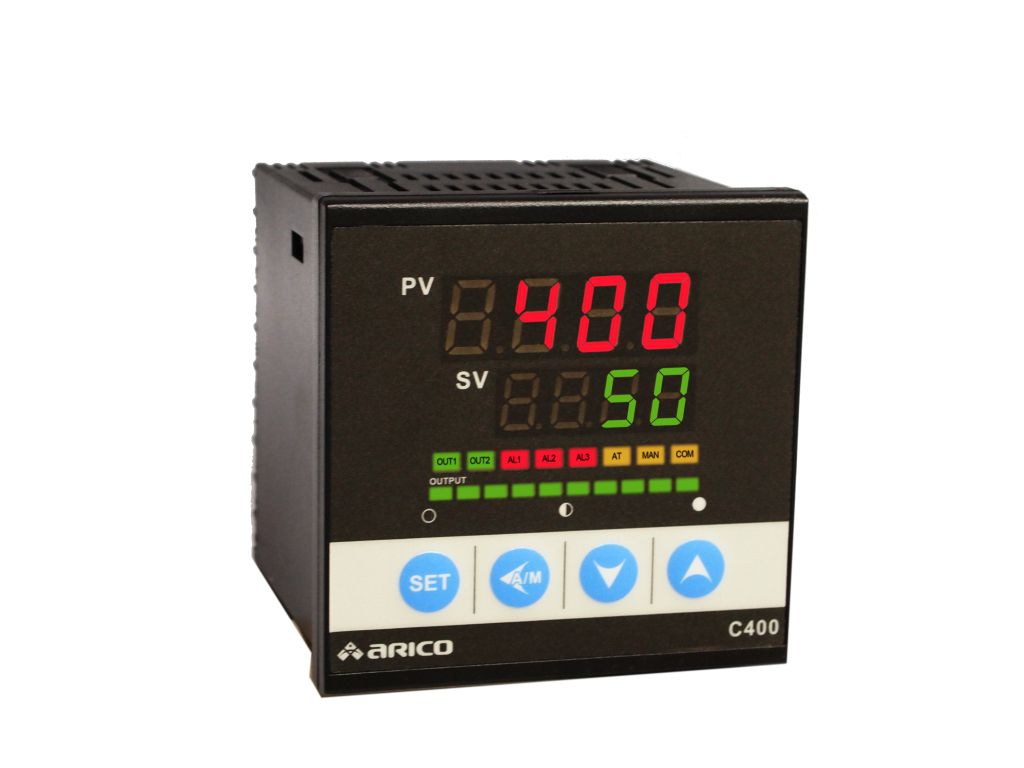

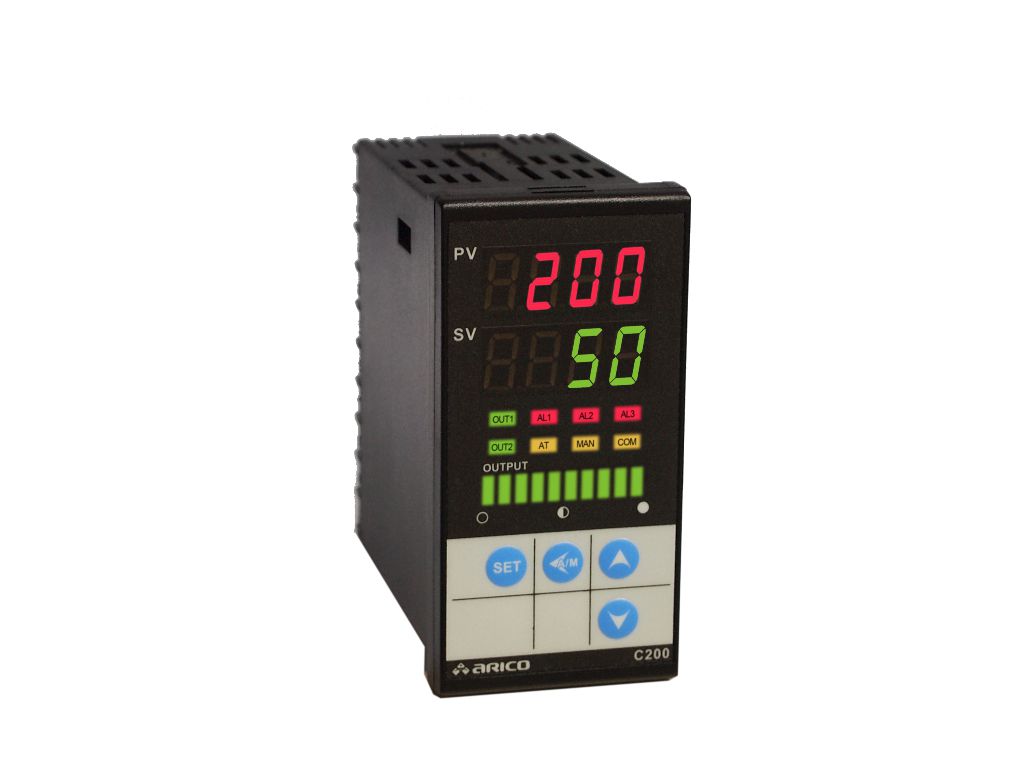

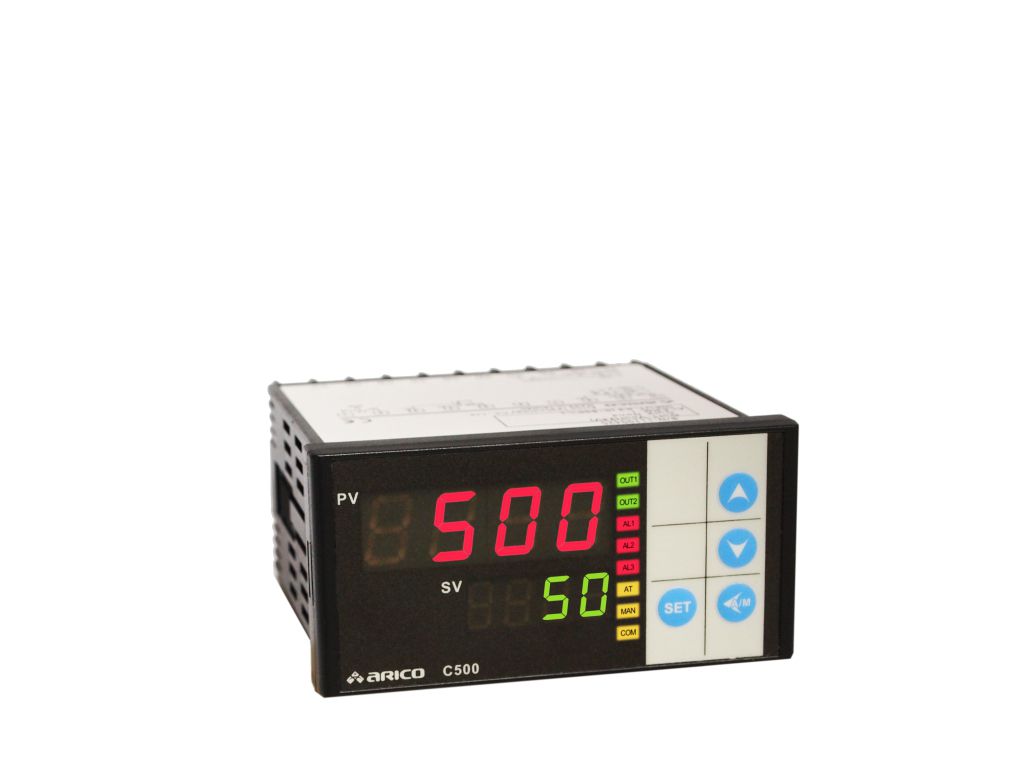

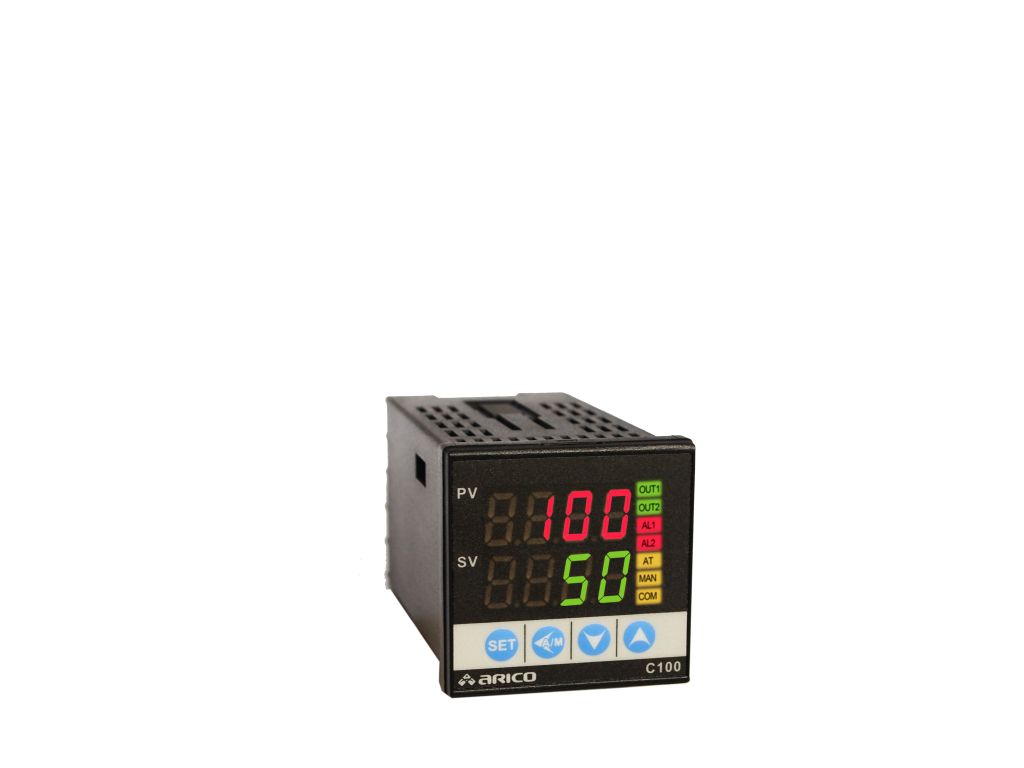

Model	C100	C200	C300	C400	C500
Dimension W × H Unit：mm	W48×H48	W48×H96	W72×H72	W96×H96	W96×H48
Unit Weight	130g	200g	200g	280g	200g
Display Type	4 digital high brightness and red color 4 digital high brightness and green color
Power Consumption	4W		5W		4W
Power Supply	AC90~240V(60/50Hz), DC24V(Optional)
Storage / Operate	0~65°C/0~50°C；20~90% RH
Data Backup Memory	EEPROM, 10 years
Accuracy	0.3 % Full scale
Alarm Output	Relay contact 8A, 250VAC
Controlling Measure	ON / OFF, P, PI, PD, PID
Approved Standard	CE-T160811N10-E
Controlling Output
Relay contact	AC250V/8A
Digital Voltage	DC24V/20mA(MAX)
Analog Voltage	0~10V (Input Impedance: 1KΩ Max.)
Analog Current	4 ~20mA (Input Impedance: 600Ω Max.)
Input Type
Thermocouple	J, K, R, S, B, E, N, T, W3, W5, PL-II (Input Impedance: approx. 1KΩ Max.)
RTD	PT-100 (DIN), JPT-100 (JIS)
Linear Analog	0~10mV, 0~20mV, 0~50mV, 4~20mA, 0~10V....see operating instructions
