V Series Temperature Controller
Features
- The product features excellent functionality and cost-effectiveness with a dual PV and SV warning display design. The intuitive display enables easy understanding of the current temperature status, and the plug-and-play installation design facilitates maintenance and replacement.
- The temperature gauge employs PID automatic calculation technology, which can output control signals automatically or manually to ensure temperature stability and accuracy. It also boasts 10 alarm modes and multiple output modes to meet different application requirements.
- Equipped with four outputs, including the main output, secondary output, and two alarm outputs, it provides flexible control options.

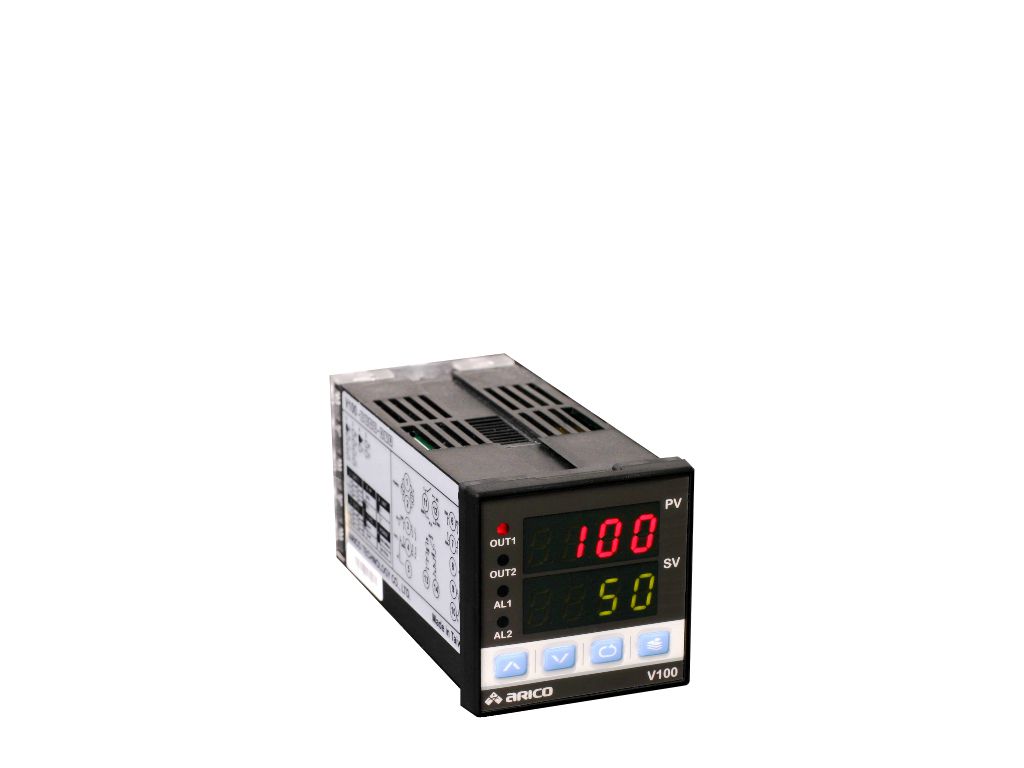

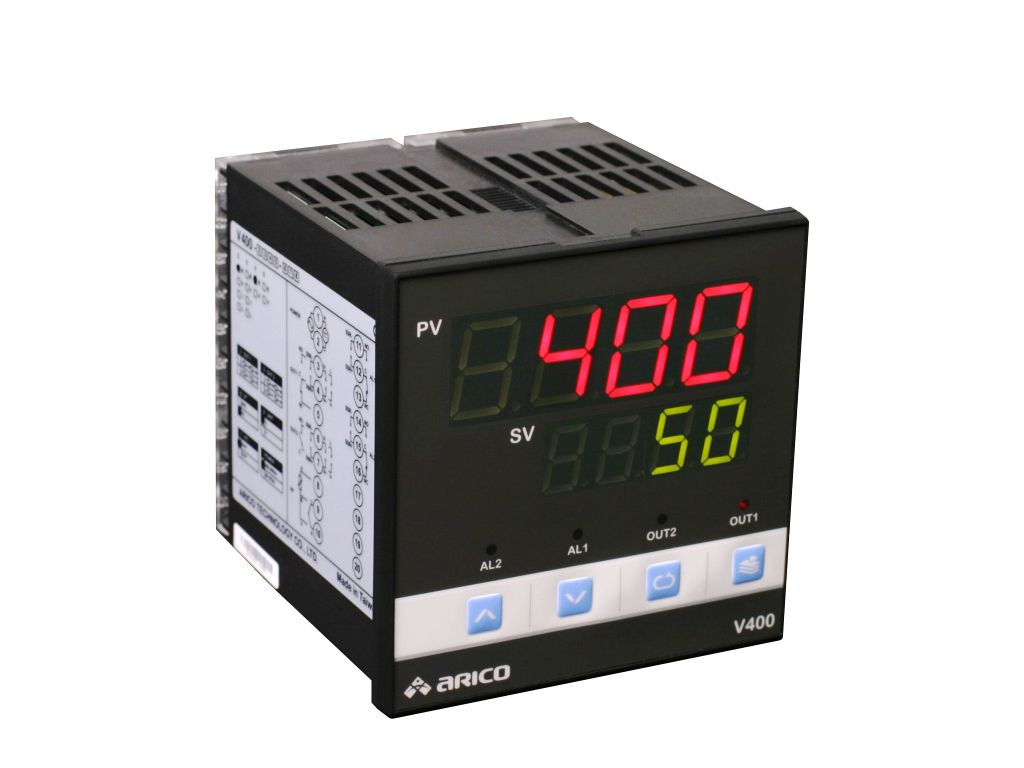

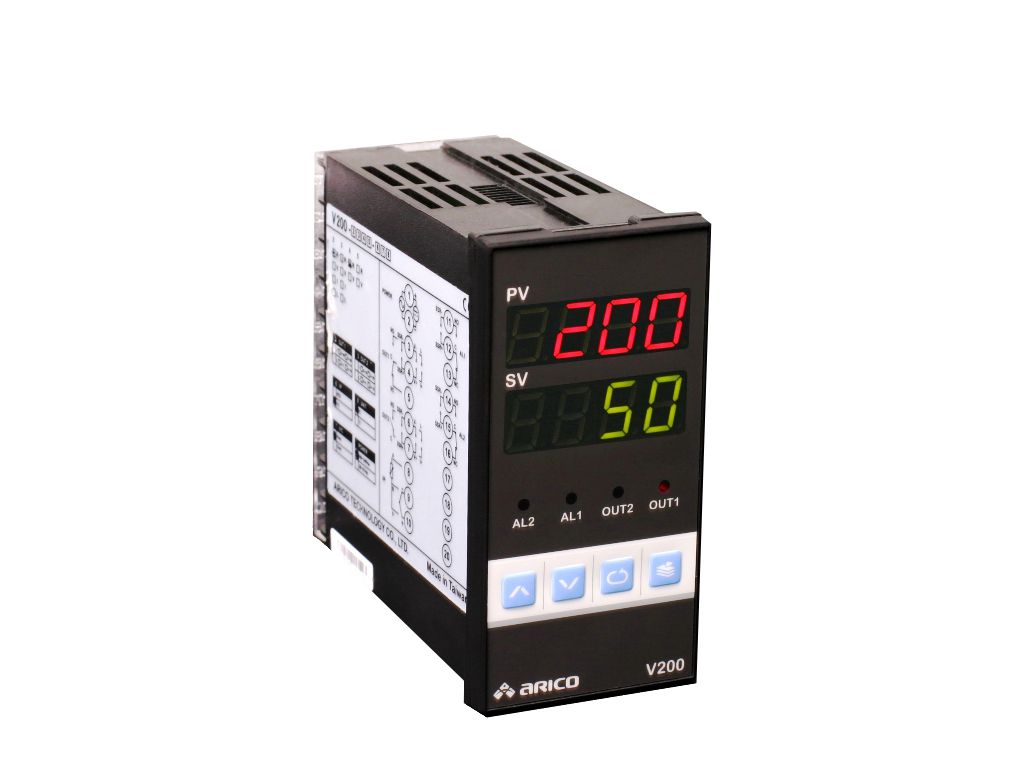

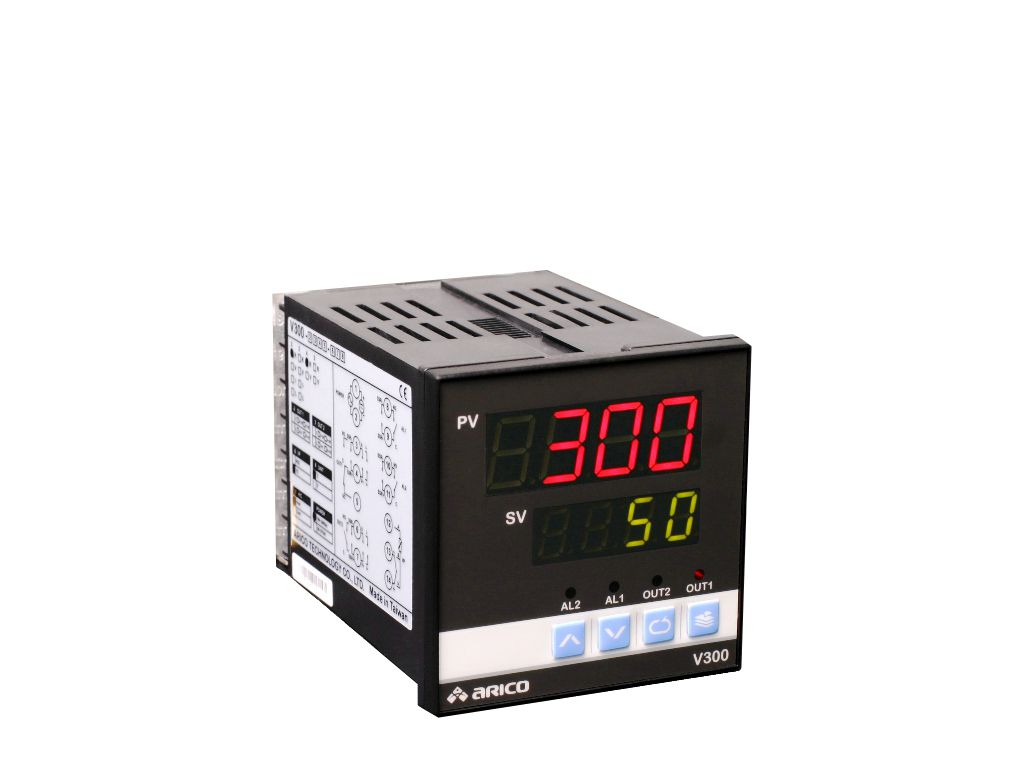

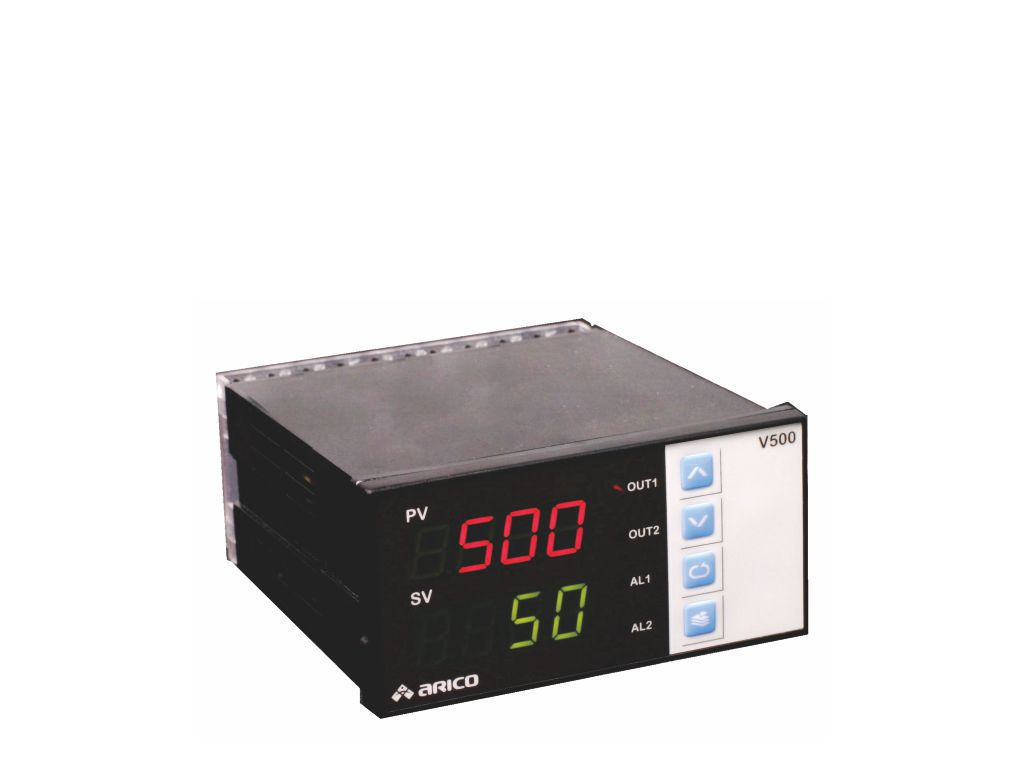

| Model | V100 | V200 | V300 | V400 | V500 | |
|
Dimension W × H Unit：mm |
W48×H48 | W48×H96 | W72×H72 | W96×H96 | W96×H48 | |
| Unit Weight | 130g | 210g | 200g | 270g | 210g | |
| Display Type |
4 digital high brightness and red color 4 digital high brightness and green color |
|||||
| Power Consumption | 4W | 5W | 4W | |||
| Power Supply | 100 ~ 240VAC ± 10%，50 / 60Hz | |||||
| Storage / Operate | 0 ~ 55°C；32°F ~ 130°F；10 ~80% RH | |||||
| Data Backup Memory | EEPROM, 10 years | |||||
| Accuracy | 0.5 % Full scale | |||||
| Alarm Output |
None Relay: AC250V NO：5A / NC：3A Digital voltage：DC24V / 20mA |
|||||
| Controlling Measure | ON / OFF, PID | |||||
| Approved Standard | CE - EM2055B0287 | |||||
| Controlling Output | ||||||
| - | Main Output | Aux. Output | ||||
| Relay contact | AC250V NO：5A / NC：3A | |||||
| Digital Voltage | DC24V / 20mA(MAX) | |||||
| Analog Voltage | 0 ~ 10V、0 ~ 5V、1 ~ 5V | None | ||||
| Analog Current | 0 ~ 20mA、4 ~ 20mA | None | ||||
| Input Type | ||||||
| Thermocouple | J、K | |||||
| RTD | PT100 | |||||
| Linear Analog | None | |||||
