M5 Series Mercury Filled - Mechanical gauge
Features
- Sale in Europe not allowed (according to EU Reg. 2017/852)
- All models are rugged, totally self-contained, and allow the user to benefit from the improved efficiency and quality that goes with pressure monitoring.
- The Gefran melt pressure gauge provides reliable, maintenance- free, localized pressure indication.
- The small capillary tube filled with a special medium isolates the gauge housing from potential thermal damage.
- Economically priced
- 1.5 times overload capacity
- Easy-to-read display
- 1/2-20 UNF thread standard, M18 x 1.5 also available
- 15-5 PH stainless steel diaphragm with Armoloy coating standard (others available on request)
- No power required

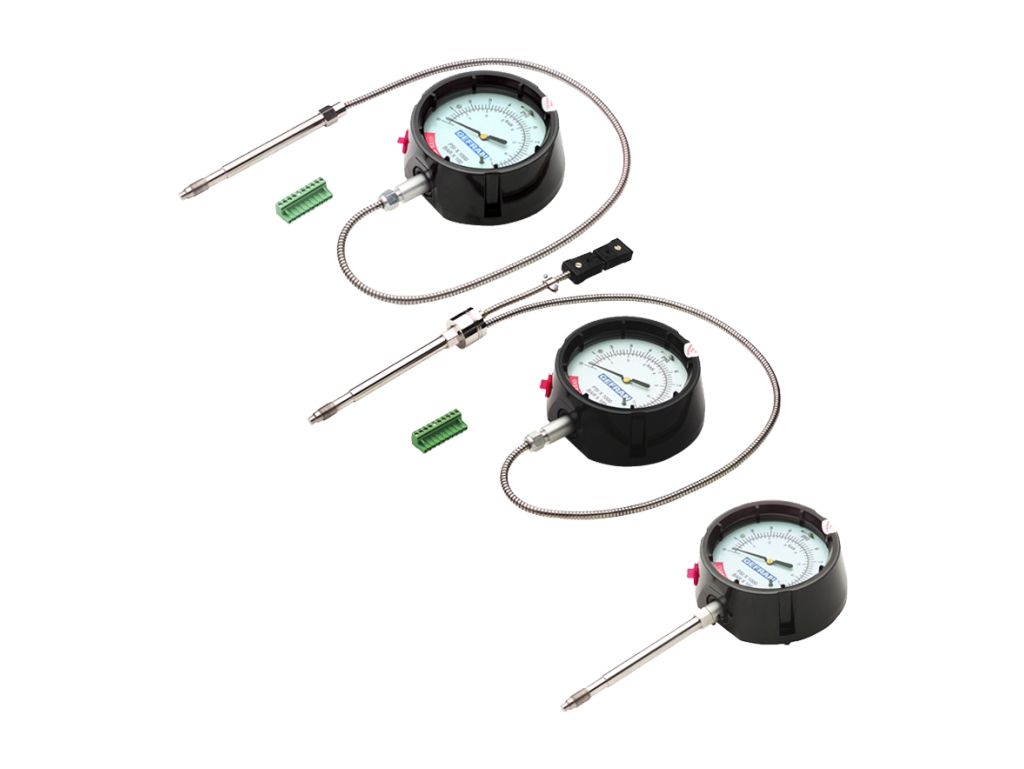

- M50 The rigid stem configuration makes installation fast and easy.
- M51 The flexible configuration is designed for applications requiring further thermal isolation or where installation would be otherwise difficult or impractical.
-
M52 The pressure/temperature configuration requires only one mounting hole for the measurement of both process values.
