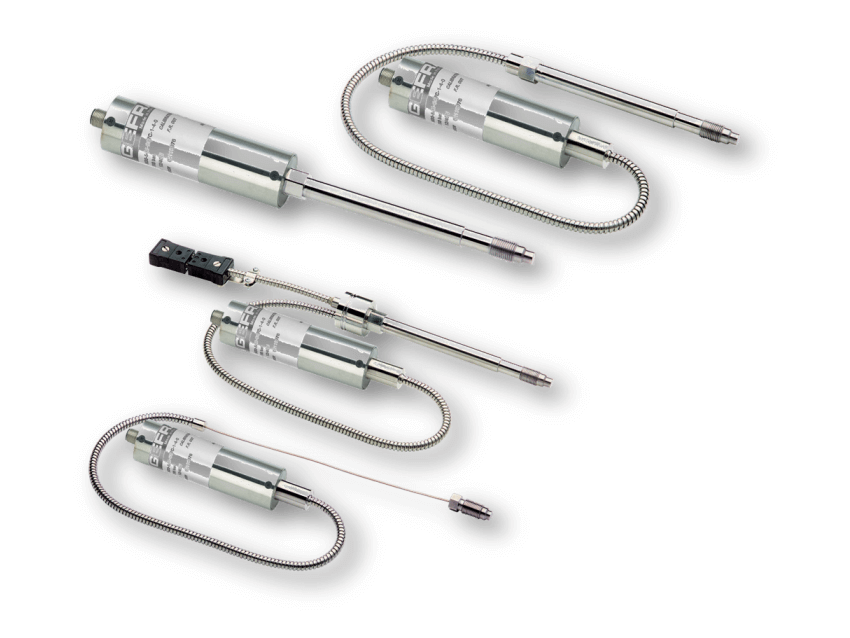

MX series Melt pressure transmitters for applications in potentially explosive atmospheres
Features
- The MX series of Gefran, are pressure transducers for using in High temperature environment.
- The main characteristic of this series is the capability to read temperature of the media up to 400°C.
- The constructive principle is based on the hydraulic transmission of the pressure.
- The fluid-filled system assures the temperature stability.
- The physical measure is transformed in a electrical mea-sure by means the strain-gauge technology.
- Pressure ranges: 0-35 to 0-2000 bar / 0-500 to 0-30000 psi
- Extensimetric measurement principle with Wheatstone bridge
- Precision: <±0.25% FSO (H); <±0.5% FSO (M)
- Calibration signal 80% FSO internally generated
- Completely interchangeable with all existing products
- Protection level: IP65 (6-pin connector)
- Standard threading 1/2-20 UNF, M18x1.5, other versions on request
- Stainless steel diaphragm 15-5 PH with armoloy coating
- For ranges below 100 bar-1500 psi:
- 17-7 PH corrugated stainless steel diaphragm with TiN (Titanium Nitride) coating
- Other diaphragm types available on request
