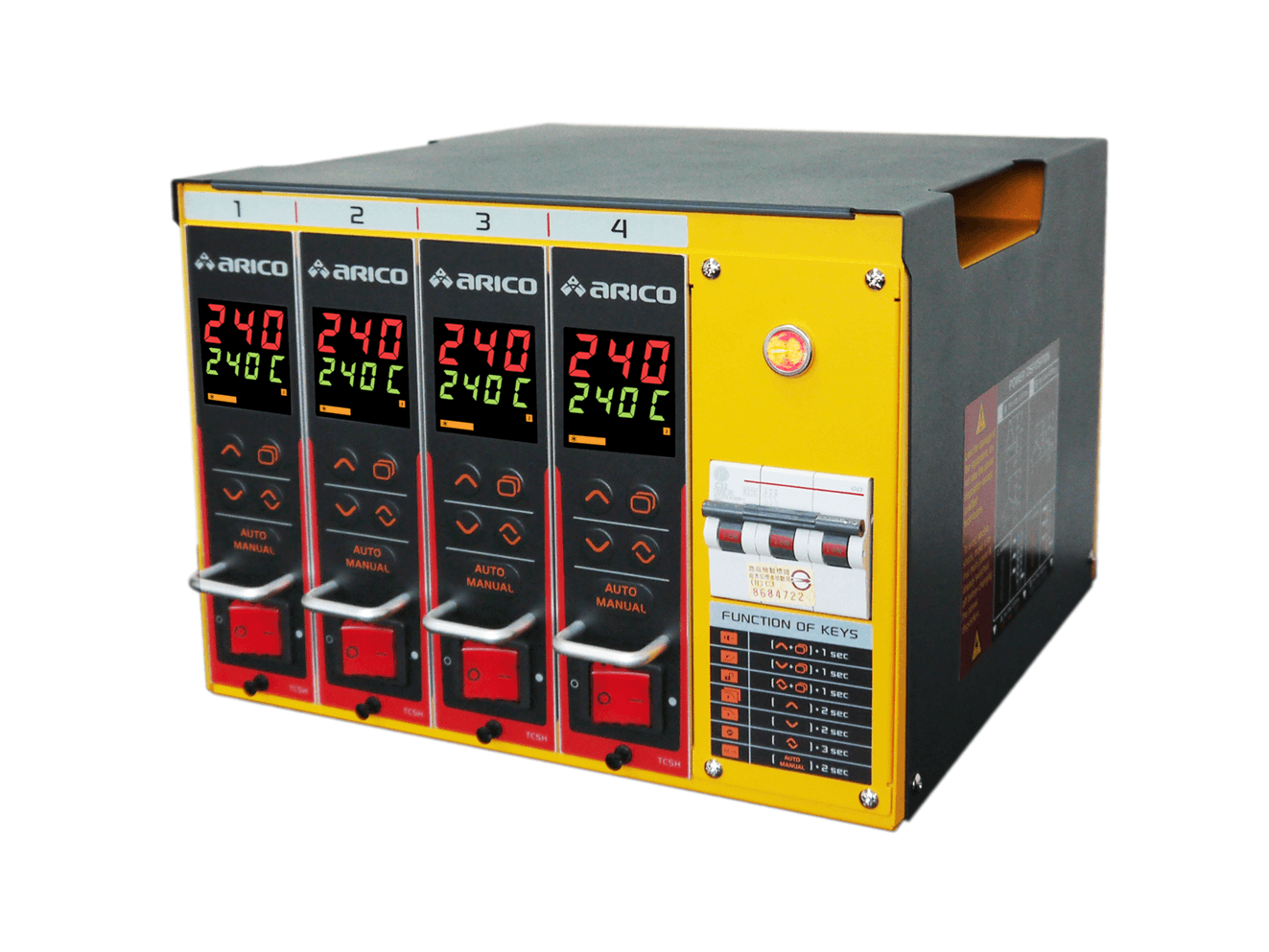

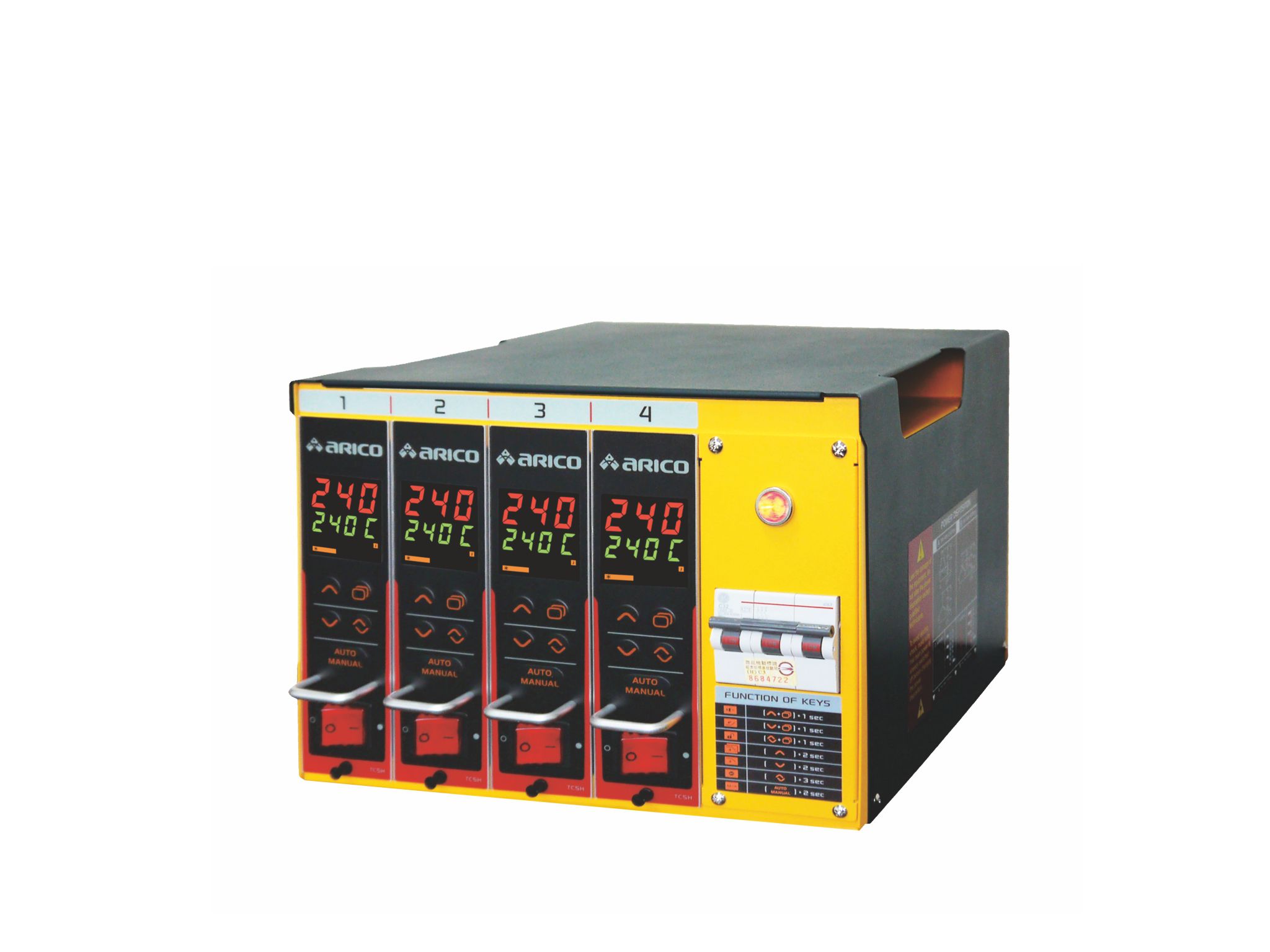

TC5H Hot Runner Temperature Controllers
Features
- The machine features a stackable design that allows for greater flexibility in installation space, and the handle can be concealed for a sleeker appearance.
- It also includes a built-in NFB switch and cooling fan, ensuring temperature stability. The device supports quick switching between 230V/380V power input, uses a high-quality Euro-American multi-pole connector for reliability, and utilizes automatic crimping for the terminal and wire, further enhancing reliability.
- Additionally, the machine features a standardized design that is compatible with modules from various brands.
| TC5H | 2 zones | 4 zones | 6 zones | 8 zones | 12 zones |
| Type | T5B02 | T5B04 | T5B06 | T5B08 | T5B12 |
| Power Switch Capacity(A) | 32 | 32 | 63 | 63 | 63 |
| Output Connector | 16pins x1 | 16pins x1 | 24pins x1 | 16pins x2 | 24pins x2 |
| Power Cable | 5.5mm² x 5C x 3M | 5.5mm² x 5C x 3M | 8mm² x 5C x 3M | 8mm² x 5C x 3M | 8mm² x 5C x 3M |
| Easy Input Switching | Yes | Yes | Yes | Yes | Yes |

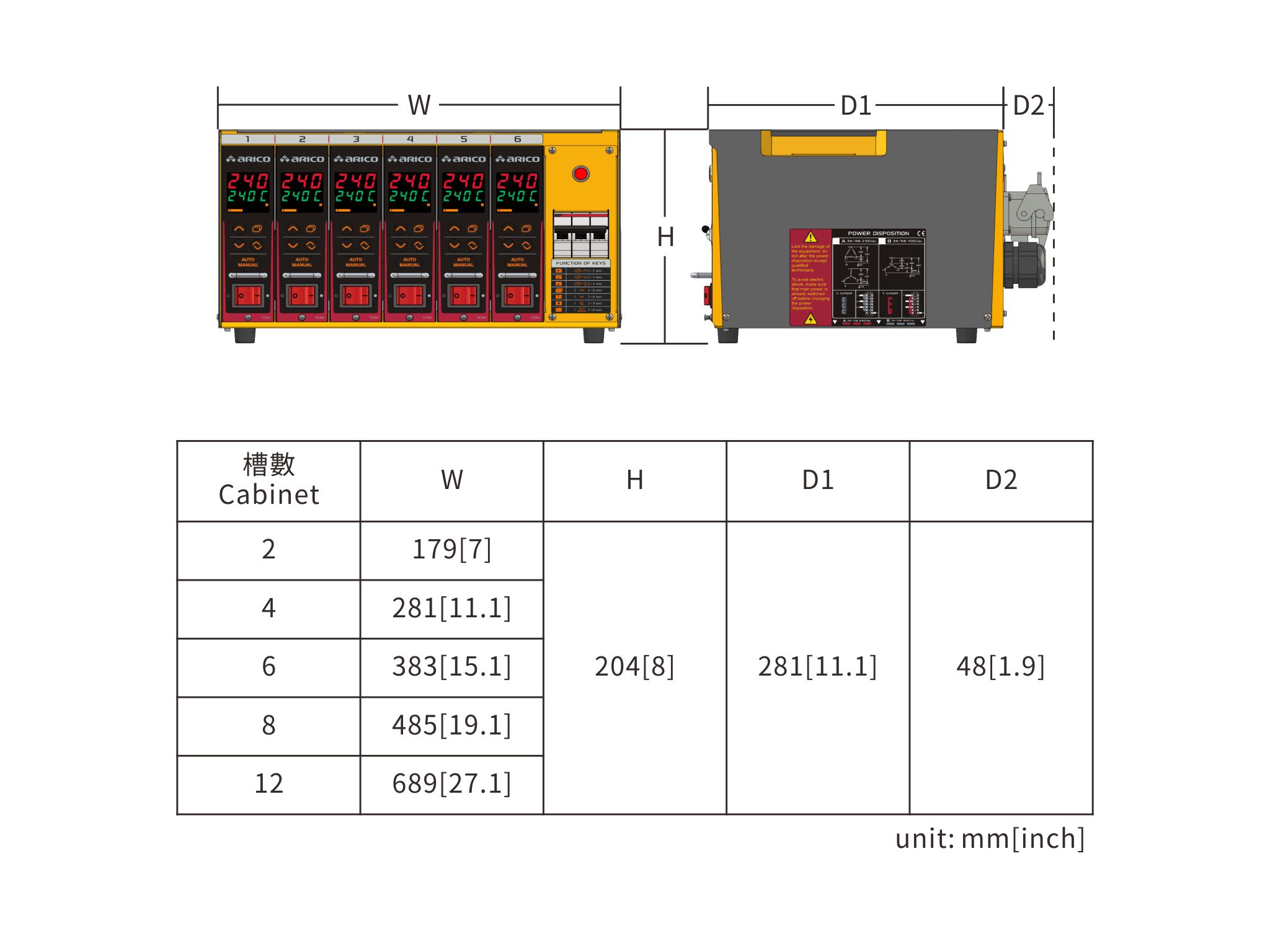

| Dimension W x H x D (mm) | 179 x 204 x 329 | 281 x 204 x 329 | 383 x 204 x 329 | 485 x 204 x 329 | 689 x 204 x 329 |

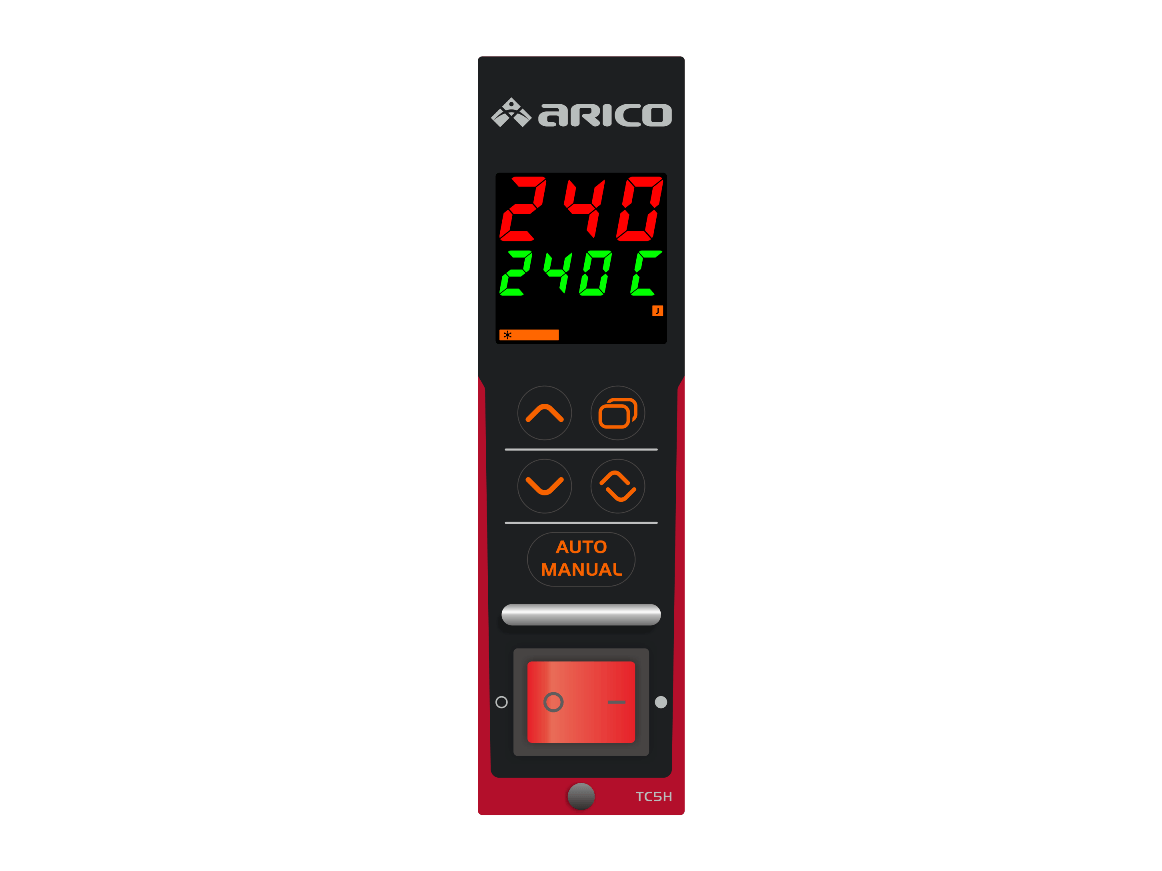

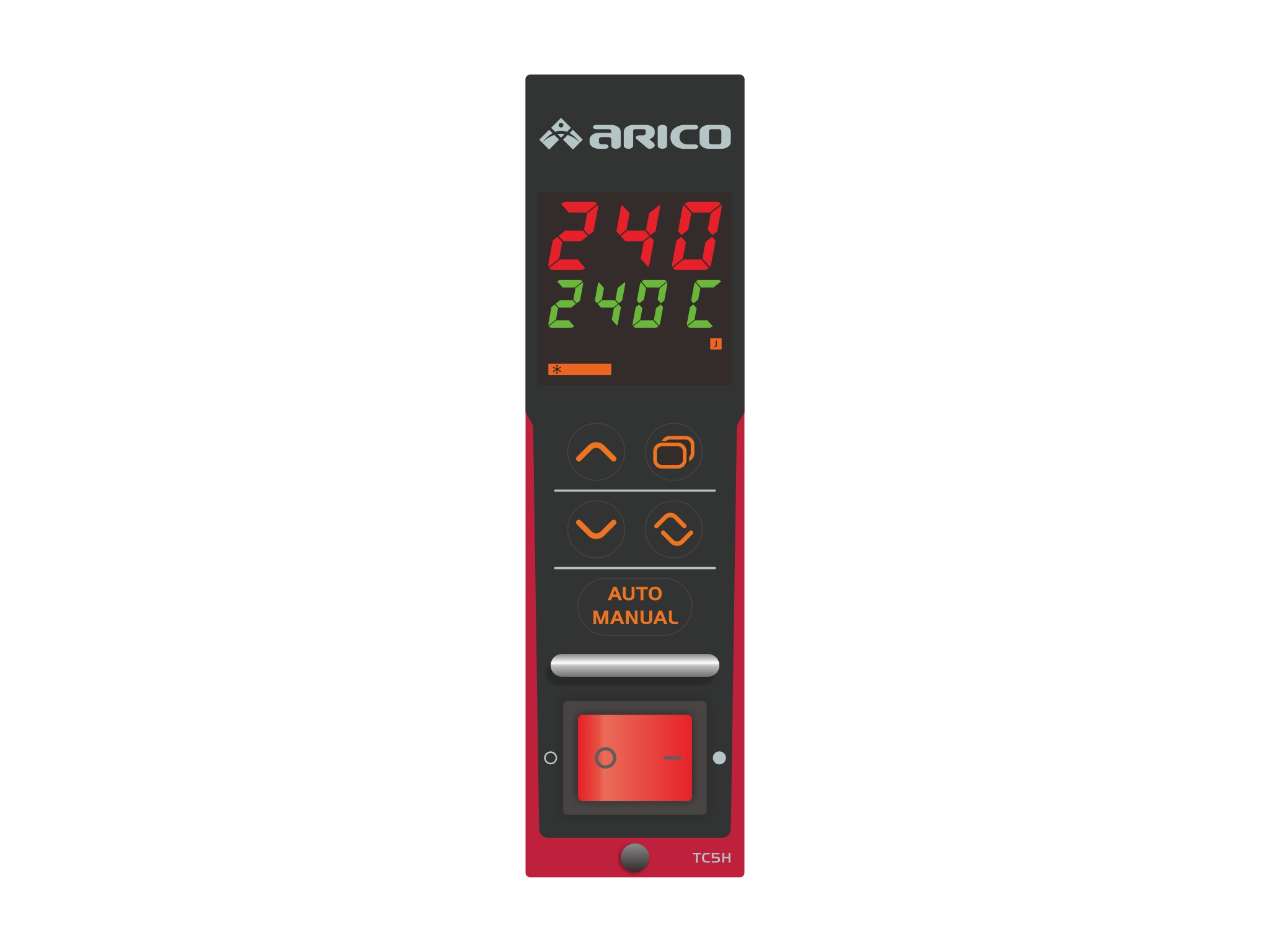

| TC5H | Model |
|
Control Points |
1 Zone |
| Power Input | 230Vac±10%,50/60Hz |
| Power Consumption | 3W |
|
Power Output |
3450W,230VAC/15A |
|
Output Mode |
Zero Cross/Phase angel |
| Input Temp. Sensor | J/K type |
| Temp. Unit | °C/°F |
| Temp. Control Range | 0~600°C / 32~999°F |
|
Output Alarm |
Six modes |
|
Control Accuracy |
±0.25%FS |
| Measurement Accuracy | ±0.25%FS |
| Storage Temp. | -20~70°C / -4~158°F |
| Working Temp. | 0~50°C/32~122°F |
| Humidity | 10~80%RH. (non-condensing) |
|
Fuse |
Fast response ceramic FF20A 500V 6.3*32 |
|
Detection Function |
Current/ Fuse open circuit/ TRAIC short-circuit |
|
Communication Mode |
RS-485 (Standard MODBUS), Optional |
|
Communication rate |
9600/19200/38400/57600/115200 |
| Specification | TC5E |
TC5H |
TC5T |
| Control Points | 1 zone | 1 zone | 2 zone |
| Power Input | 230Vac±10%,50/60Hz | 230Vac±10%,50/60Hz | 230Vac±10%,50/60Hz |
| Power Consumption | 7W | 3W | 7W |
| Power Output | 3450W,230VAC/15A | 3450W,230VAC/15A |
3450W,230VAC/15A (Every module) |
| Output Mode | Zero Cross/Phase angel | Zero Cross/Phase angel | Zero Cross/Phase angel |
| Input Temp. Sensor | J/K type | J/K type | J/K type |
| Temp. Unit | °C/°F | °C/°F | °C/°F |
| Temp. Control Range | 0~600°C / 32~999°F | 0~600°C / 32~999°F | 0~600°C / 32~999°F |
| Output Alarm | Six modes | Six modes | Six modes |
| Control Accuracy | ±0.25%FS | ±0.25%FS | ±0.25%FS |
| Measurement Accuracy | ±0.25%FS | ±0.25%FS | ±0.25%FS |
| Storage Temp | -20~70°C / -4~158°F | -20~70°C / -4~158°F | -20~70°C / -4~158°F |
| Working Temp | 0~50°C/32~122°F | 0~50°C/32~122°F | -10~50°C /14~122°F |
| Humidity | 10~80%RH. (non-condensing) | 10~80%RH. (non-condensing) | 0~80%RH. (non-condensing) |
| Fuse | Fast response ceramic F20A 250V 6.3*32 | Fast response ceramic FF20A 500V 6.3*32 | Fast response ceramic FF20A 500V 6.3*32 |
| Detection Function | None | Current/ Fuse open circuit/ TRAIC short-circuit | Current/ Fuse open circuit/ TRAIC short-circuit |
| Communication Mode | None | RS-485 (Standard MODBUS), Optional | RS-485 (Standard MODBUS), Optional |
| Communication Rate | None | 9600/19200/38400/57600/115200 | 9600/19200/38400/57600/115200 |
